JSCJDatasheet (PDF)

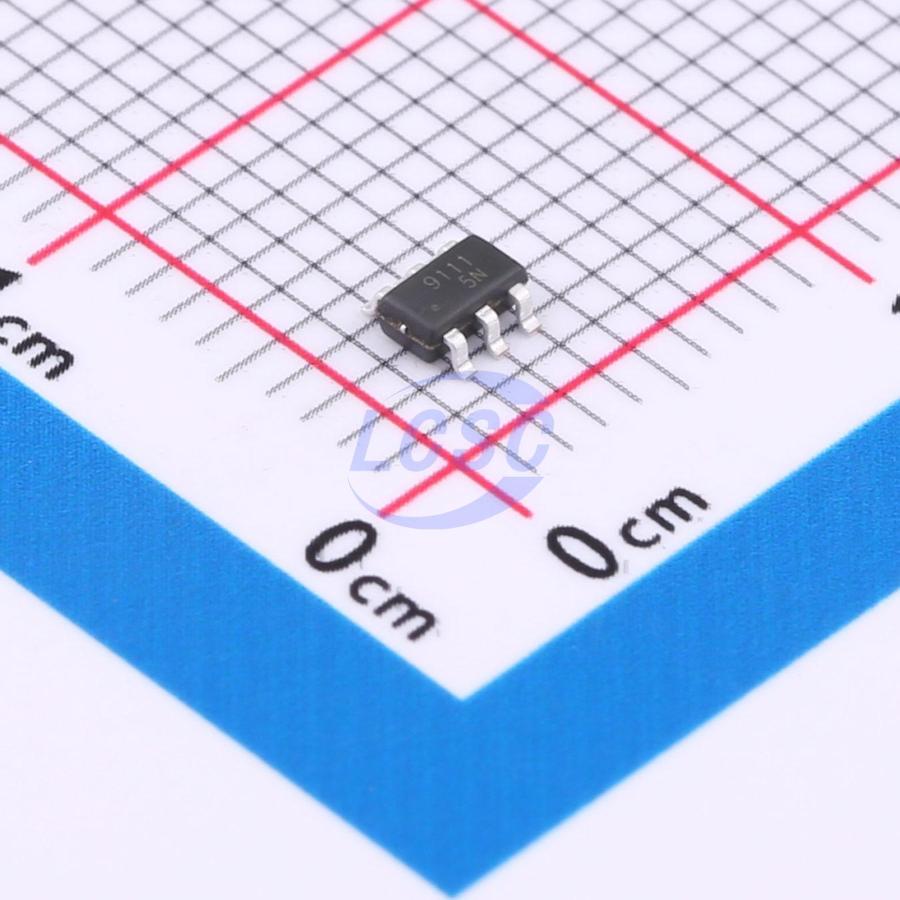

CJDR9111
2V~6V SOT-23-6L Motor Drivers, Controllers RoHS
SOT-23-6LROHS CompliantActive
Low Input Voltage Single Channel Full Bridge Driver
- Manufacturer
- JSCJ
- Manufacturer part #
- CJDR9111
- Store part #
- C17703109
- Package / case
- SOT-23-6L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C17703109
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.99 | ₹59.95 |
| 50+ | ₹9.47 | ₹473.50 |
| 150+ | ₹8.20 | ₹1,230.00 |
| 500+ | ₹7.26 | ₹3,630.00 |
| 3,000+ | ₹6.51 | ₹19,530.00 |
| 6,000+ | ₹6.13 | ₹36,780.00 |
5 × ₹11.99
₹59.95
excl. GST
₹70.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJDR9111
₹59.95 for 5 + GST
Specifications
- Features
- Active braking function
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 10nA
- Output Current
- 1.1A
- Peak Current
- 2.2A
- RDS(on)
- 480mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
CJDR9111 is a single-channel full-bridge driver that provides up to 1.1A continuous output current and can operate at 2.0~6.0V power supply voltage. CJDR9111 has industry standard compatible PWM (IN / IN) input interface, and has protection functions such as thermal shutdown and under-voltage locking.
Applications
- Digital Single Lens Reflex (DSLR) Lens
- Electric Toothbrush
- Medical Equipment
- Robotics
- Shared Bicycle Lock
- Toys
- Video Camera
- Water Gas Meter Switch
Key features
- H-Bridge Motor Driver
- Power Supply Voltage: 2.0~6.0V
- Low Conductivity Impedance: 480mΩ (HS + LS)
- Drives Output Current: 1.1A (Continuously)
- PWM (IN 1 / IN 2) Input Mode
- Built-in Over Temperature Protection
- Low Current Sleep Mode: (nA level, IN 1 = IN 2 = 0)
