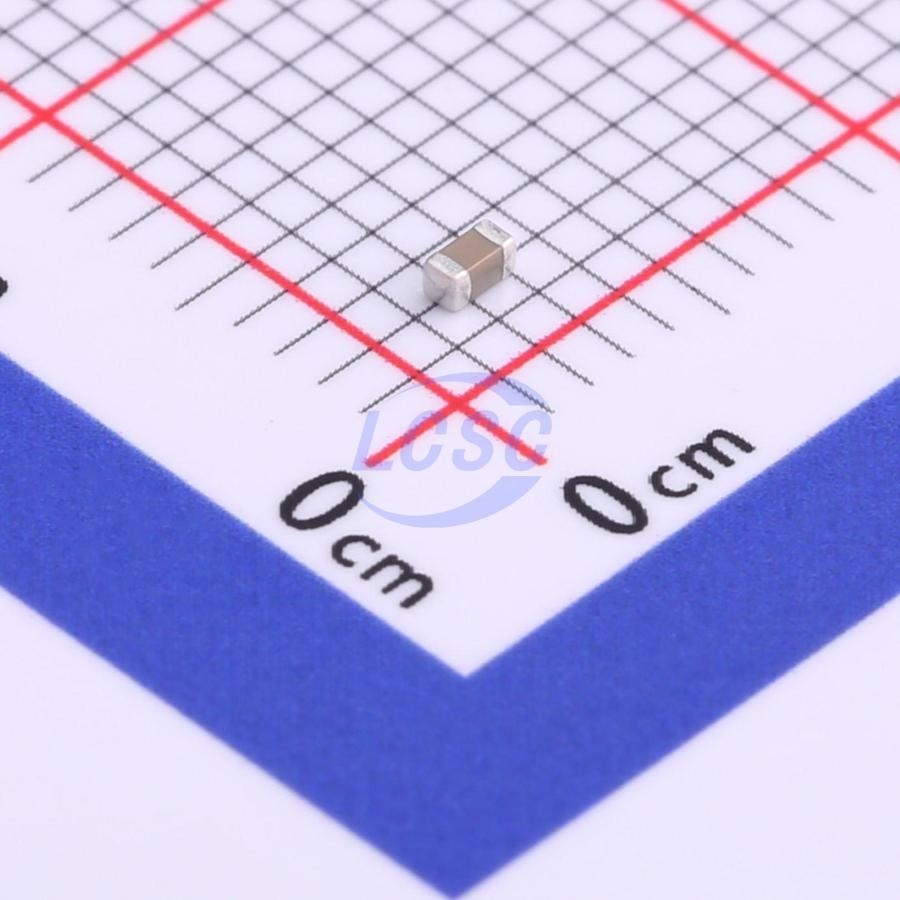

CL10A475KP8NNNC

The Samsung Electro-Mechanics CL10A475KP8NNNC is a multilayer ceramic chip capacitor (MLCC) with a nominal capacitance of 4.7µF. It has a ±10% (K) capacitance tolerance and a 10V DC rated working voltage. The capacitor features an X5R Class II dielectric and uses nickel (Ni) inner electrodes with Ni barrier and matte tin (Sn) plated terminations for solderability.

The CL10A475KP8NNNC is supplied in a 0603 (1608 metric) package. Its nominal dimensions are 1.60 ± 0.10 mm in length, 0.80 ± 0.10 mm in width, and 0.80 ± 0.10 mm in height, in accordance with Samsung's standard 0603 MLCC package specification.

The CL10A475KP8NNNC uses an X5R Class II dielectric. It provides a capacitance change within ±15% over an operating temperature range of −55°C to +85°C. For capacitors rated at 10V and below, the maximum dissipation factor (DF) is 5% under the specified test conditions. The insulation resistance meets Samsung's specified requirements as defined in the Reliability Test Condition section of the catalog.

This capacitor is suitable for general-purpose electronic applications such as power supply decoupling, bypassing, filtering, and coupling circuits. Samsung also lists applications including desktop PCs, notebook PCs, DC-DC converters, TVs, memory modules, handheld devices, digital still cameras, digital video cameras, LCD products, and game machines.

The "C" packaging code indicates cardboard tape supplied on a 7-inch reel. The capacitor is RoHS and REACH compliant and is manufactured using lead-free terminations with a Ni barrier and matte tin (Sn) plating.
