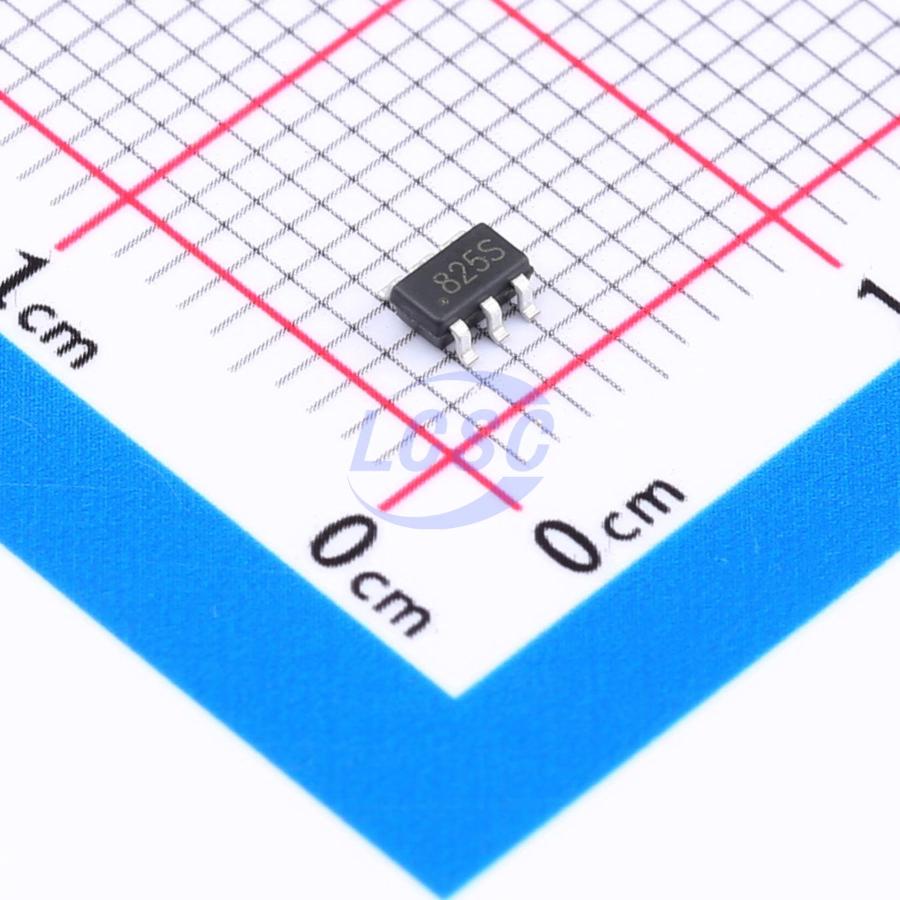

CN825S
Supervisor 1 Channel SOT-23-6
Low-power reset integrated circuit with watchdog and manual reset functions
- Manufacturer
- CONSONANCE
- Manufacturer part #
- CN825S
- Store part #
- C3034869
- Package / case
- SOT-23-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,540 in stock
#C3034869
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.07 | ₹75.35 |
| 50+ | ₹11.97 | ₹598.50 |
| 150+ | ₹10.43 | ₹1,564.50 |
| 500+ | ₹9.26 | ₹4,630.00 |
| 3,000+ | ₹7.95 | ₹23,850.00 |
| 6,000+ | ₹7.49 | ₹44,940.00 |
5 × ₹15.07
₹75.35
excl. GST
₹88.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CN825S
₹75.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low;Active High
- standby current
- 16uA
- Voltage - Supply
- 1.1V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The CN825 series ICs are microprocessor reset chips for power supply voltage monitoring, integrating a voltage detection unit, timer, watchdog, and manual reset unit. The CN825 series reduces system complexity and improves system reliability. The CN825 series asserts a reset signal when the supply voltage falls below the reset threshold. The reset threshold is internally fixed with 1% accuracy. The watchdog timer timeout period is 1.6 seconds. The CN825 series provides both active-low and active-high reset outputs. The CN825 series reset ICs are designed to monitor power supplies for digital components such as microprocessors, controllers, DSPs, and memories. The CN825 series asserts a reset signal during power-up, power-down, or transient undervoltage conditions on the monitored supply, preventing erroneous instruction execution.
Applications
- DSP, computers, microcontrollers
- Industrial equipment
- Smart instruments
- Battery-powered devices
Key features
- Fixed internal reset threshold
- Valid reset output maintained with VCC as low as 1.1V
- Reset threshold range: 1.8V to 5.0V
- Reset threshold accuracy: ±1%
- Low operating current: 2.7μA @ VCC below reset threshold
- Reset pulse width: 200ms typical
- Watchdog timeout period: 1.6s typical
- Active-low and active-high reset outputs
- Filters transient voltage dips on power supply
- SOT-23-6 package
- Operating temperature range: -40°C to +85°C
- Lead-free, RoHS compliant, halogen-free
