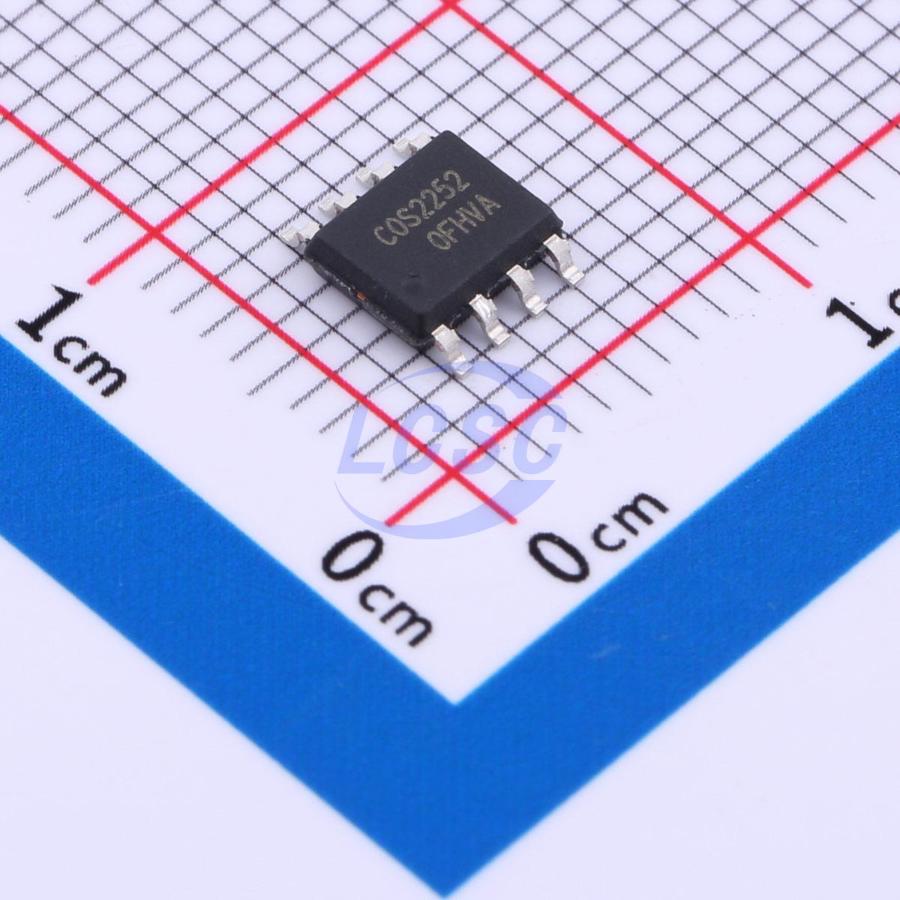

COS2252SR
50mA 2 5mV 200V/ms 1pA 125dB 25uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Micro Power Operational Amplifiers, Rail-to-Rail Input/Output
- Manufacturer
- COSINE
- Manufacturer part #
- COS2252SR
- Store part #
- C726657
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C726657
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.56 | ₹51.56 |
| 10+ | ₹40.47 | ₹404.70 |
| 30+ | ₹35.89 | ₹1,076.70 |
| 100+ | ₹30.02 | ₹3,002.00 |
| 500+ | ₹27.41 | ₹13,705.00 |
| 1,000+ | ₹25.68 | ₹25,680.00 |
1 × ₹51.56
₹51.56
excl. GST
₹60.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COS2252SR
₹51.56 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 200V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 25uA
- Gain Bandwidth Product
- 350kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 72nV/√Hz@1kHz
- Dual Supply
- -8V~-1.35V;1.35V~8V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
