COSINEDatasheet (PDF)

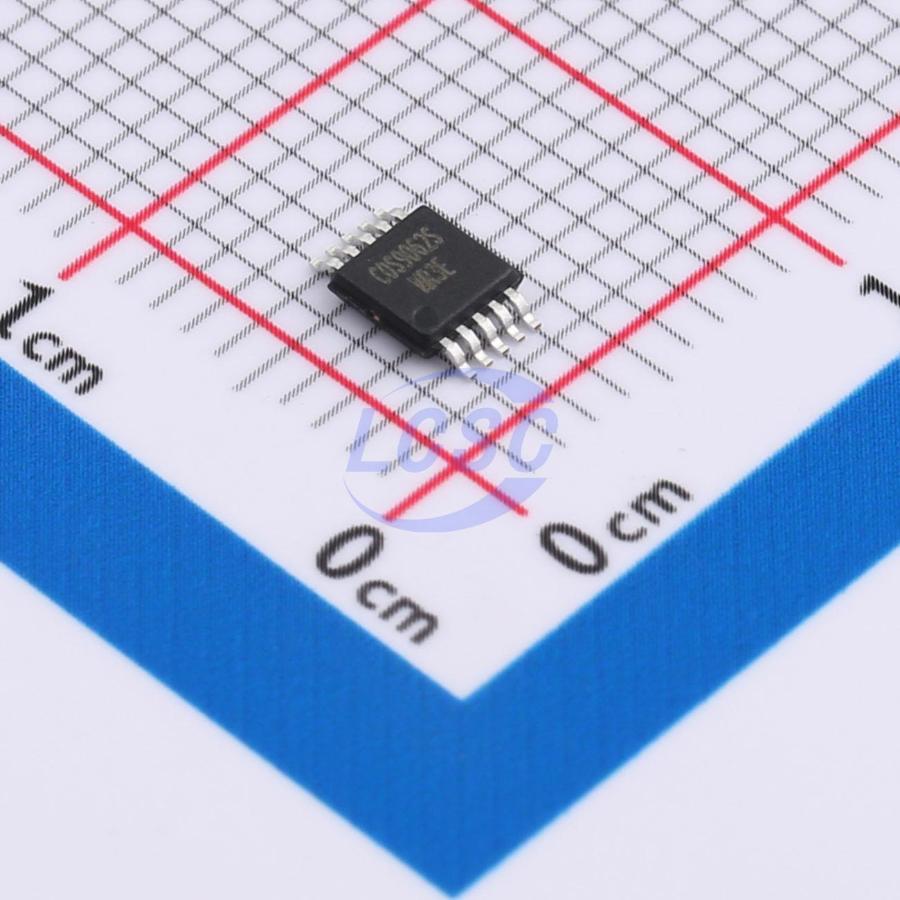

COS9062SMRA
21mA 2 2mV 8.5V/us 2.5pA 125dB 725uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-10 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-10ROHS CompliantActive
Low Power Operational Amplifiers, 10MHz, RRIO
- Manufacturer
- COSINE
- Manufacturer part #
- COS9062SMRA
- Store part #
- C5447210
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,365 in stock
#C5447210
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.03 | ₹110.15 |
| 50+ | ₹21.50 | ₹1,075.00 |
| 150+ | ₹21.14 | ₹3,171.00 |
| 500+ | ₹20.80 | ₹10,400.00 |
5 × ₹22.03
₹110.15
excl. GST
₹129.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS9062SMRA
₹110.15 for 5 + GST
Specifications
- Output Current
- 21mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 2.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 2.5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Quiescent Current
- 725uA
- Gain Bandwidth Product
- 10MHz
- Features
- Enable/shutdown function;Built-in compensation
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~7V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS9062SMRB#C7190318COSINE · MSOP-10 | COSINE | MSOP-10 | 50 | ₹35.35 · 50 in stock | View |
