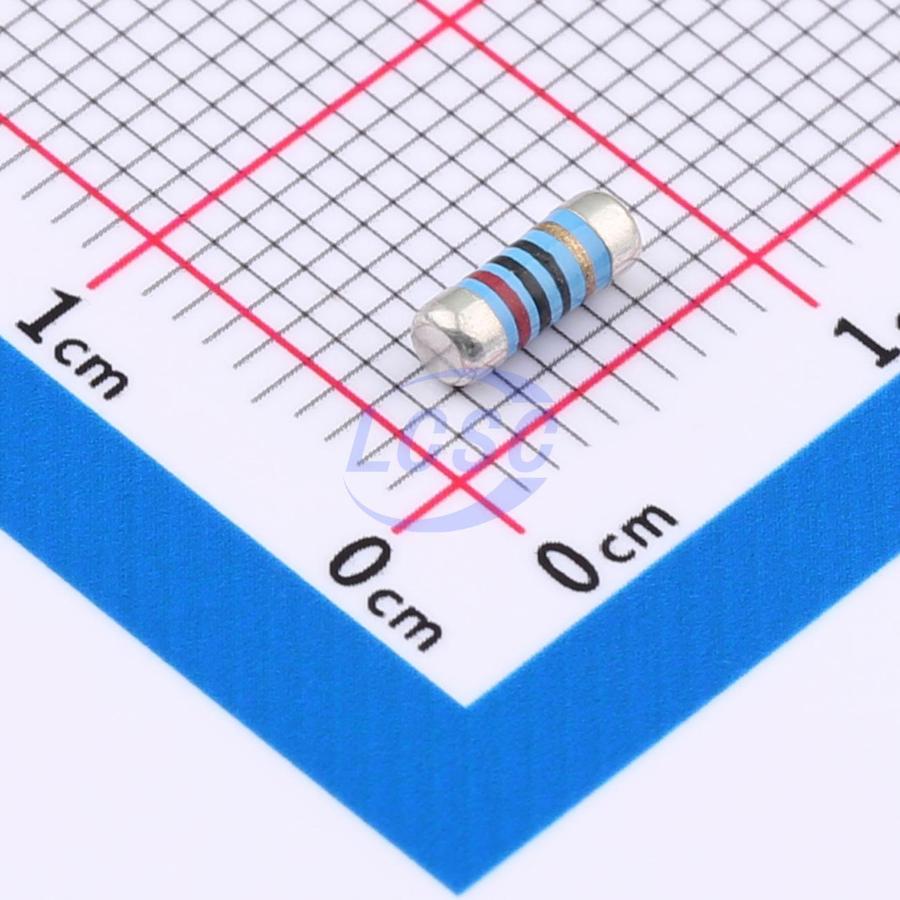

Viking

CSRV0207FTDT0200

20Ω 1W ±50ppm/℃ ±1% MELF-0207 Chip Resistor - Surface Mount RoHS

MELF-0207ROHS CompliantActive

RES 20Ω ±1% 1W MELF-0207

Manufacturer: Viking
Manufacturer part #: CSRV0207FTDT0200
Store part #: C37635716
Package / case: MELF-0207
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C37635716

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
10+	₹8.97	₹89.70
100+	₹7.16	₹716.00
300+	₹6.24	₹1,872.00
1,000+	₹5.57	₹5,570.00
5,000+	₹5.03	₹25,150.00
10,000+	₹4.75	₹47,500.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Resistance: 20Ω
Power(Watts): 1W
Temperature Coefficient: ±50ppm/℃
Tolerance: ±1%
Operating Temperature: -55℃~+155℃

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.114 g

Overview

Applications

Automotive (non-safety components), industrial, telecommunications, medical equipment, measurement/test equipment

Key features

Thin film technology
AEC-Q200 compliant
Excellent overall stability
Tin terminations over nickel barrier
Tolerances as low as ±0.1%
Ultra-low TCR down to ±5 PPM/℃
High power rating up to 1W
SMD construction
Lead-free and RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	CSR0207FTDT0200#C42388018Viking · MELF-0207	Viking	MELF-0207	On request	₹8.68 · 0 in stock	View
