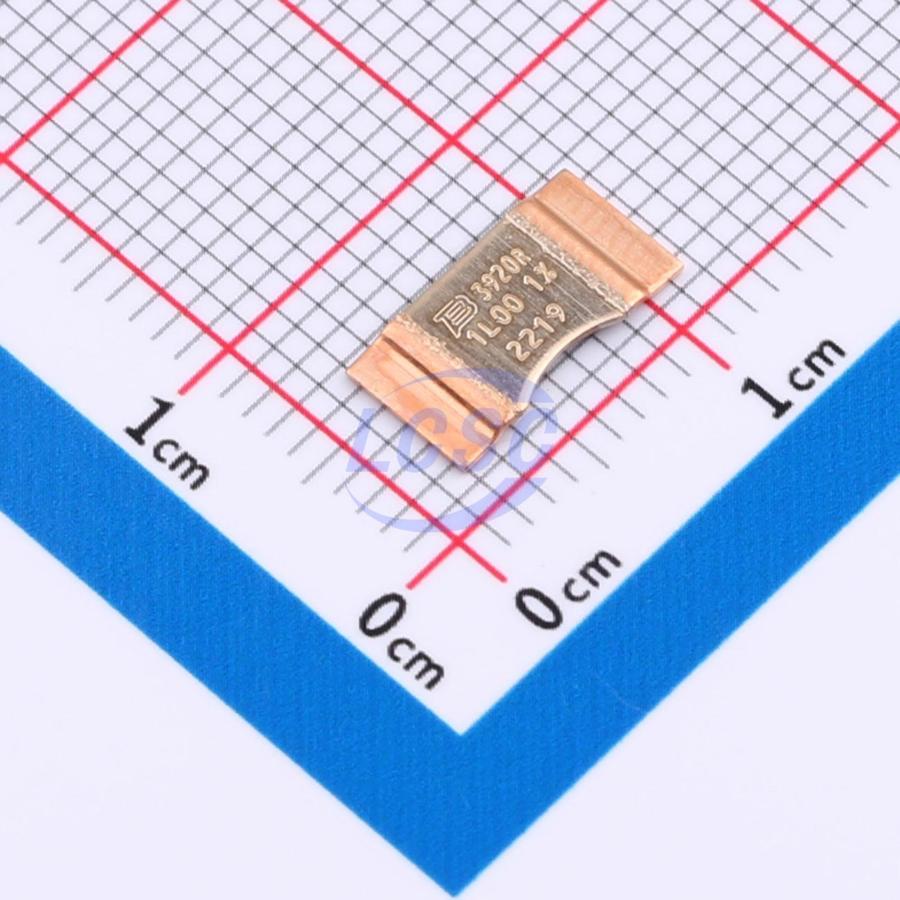

CSS2H-3920R-1L00F BOURNS

CSS2H-3920R-1L00F

8W 1mΩ ±50ppm/℃ ±1% 3920 Chip Resistor - Surface Mount RoHS

3920ROHS3 CompliantActive

RES 1mΩ ±1% 8W 3920

Manufacturer: BOURNS
Manufacturer part #: CSS2H-3920R-1L00F
Store part #: C4087295
Package / case: 3920
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

398 in stock

#C4087295

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹103.45	₹103.45
10+	₹83.23	₹832.30
30+	₹73.02	₹2,190.60
100+	₹63.03	₹6,303.00
500+	₹56.94	₹28,470.00
1,000+	₹53.90	₹53,900.00

Quantity (min 1)

1 × ₹103.45

₹103.45

excl. GST

₹122.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

CSS2H-3920R-1L00F

₹103.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Power(Watts): 8W
Resistance: 1mΩ
Temperature Coefficient: ±50ppm/℃
Tolerance: ±1%
Operating Temperature: -55℃~+170℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.249 g

Overview

Applications

Current sensing
Voltage dividing
Battery management systems
Power modules
Inverters
Industrial applications

Key features

EB welded metal strip
Very high power
Excellent long-term stability
Low resistance, low TCR
Low thermoelectric EMF
RoHS compliant* and halogen-free**
AEC-Q200 compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SR392080FR001FZ#C881080EVER OHMS · 3920	EVER OHMS	3920	3	₹98.62 · 3 in stock	View
	WSLP39211L000FEA#C844088VISHAY · 3921	VISHAY	3921	5,941	₹200.06 · 5,941 in stock	View
	CHSA3920R0010F#C6533921EATON · 3920	EATON	3920	On request	₹24.45 · 0 in stock	View
	Y14840R00100F9R#C6618046VISHAY · 3920	VISHAY	3920	On request	₹258.45 · 0 in stock	View
