EVISUN

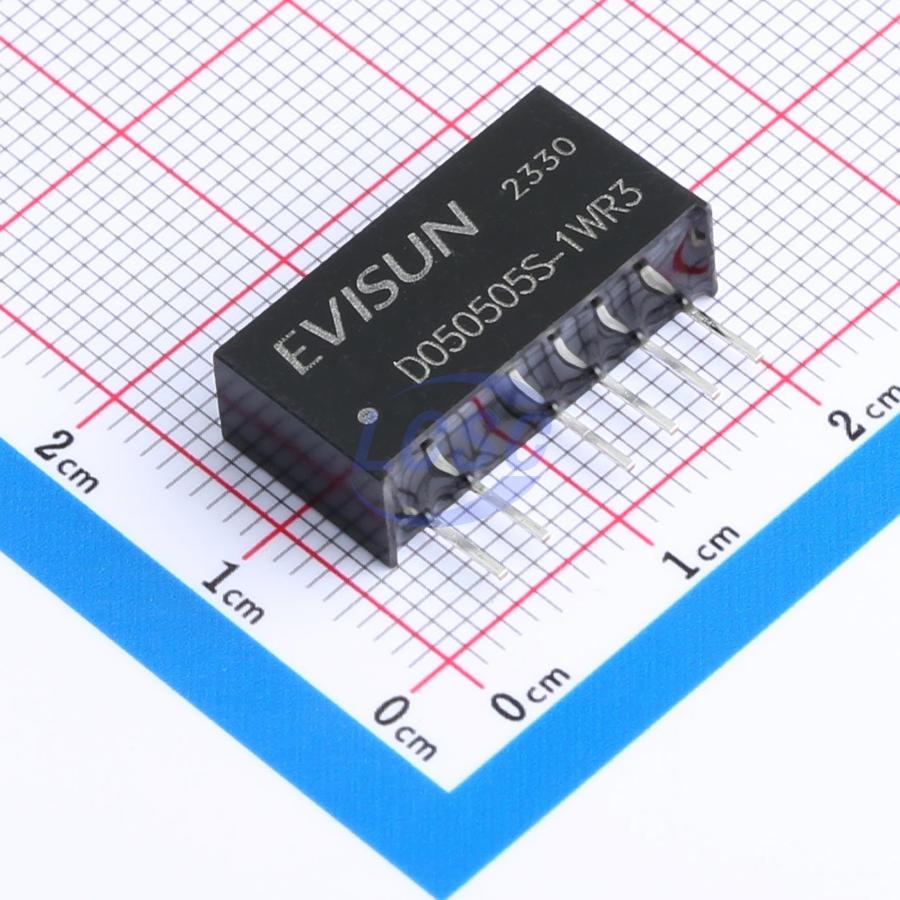

D050505S-1WR3

Isolated Module DC DC Converter 2 Output 5V 100mA 4.5V~5.5V Input

PopularSIP-7RoHSActive

1W Isolated Non-regulated Dual-isolated Dual-output DC-DC Module Power Supply with Fixed Voltage Input

Manufacturer: EVISUN
Manufacturer part #: D050505S-1WR3
Store part #: C7465215
Package / case: SIP-7
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,283 in stock

#C7465215

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹199.48	₹199.48
10+	₹173.90	₹1,739.00
30+	₹153.07	₹4,592.10
100+	₹131.82	₹13,182.00
500+	₹122.07	₹61,035.00
1,000+	₹117.96	₹1,17,960.00

Quantity (min 1)

1 × ₹199.48

₹199.48

excl. GST

₹235.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10 per tube

D050505S-1WR3

₹199.48 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Ripple Noise: 30mVp-p
Operating Temperature: -40℃~+105℃
Quiescent Supply Current: 6mA
Voltage - Supply: 4.5V~5.5V
Capacitive Load(Max): 100uF
Number of Outputs: 2
Iout: 100mA
Height: 6mm
Frequency - Switching: 200kHz~340kHz
Isolation Voltage(Vrms): 1.5kV
Features: Short Circuit Protection
Output Power: 1W
Conversion Efficiency: 80%
Length: 19.65mm
Width: 10.16mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 10 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.28 g

Overview

Applications

Distributed power systems
Pure digital circuits
General low-frequency analog circuits
Relay driver circuits
Data switching circuits

Key features

Sustained short-circuit protection
No-load input current as low as 6mA
Efficiency up to 80%
Low ripple factor and low noise
Isolation voltage 1500VDC/min
International standard pinout
Operating temperature range: -40°C~+105°C
