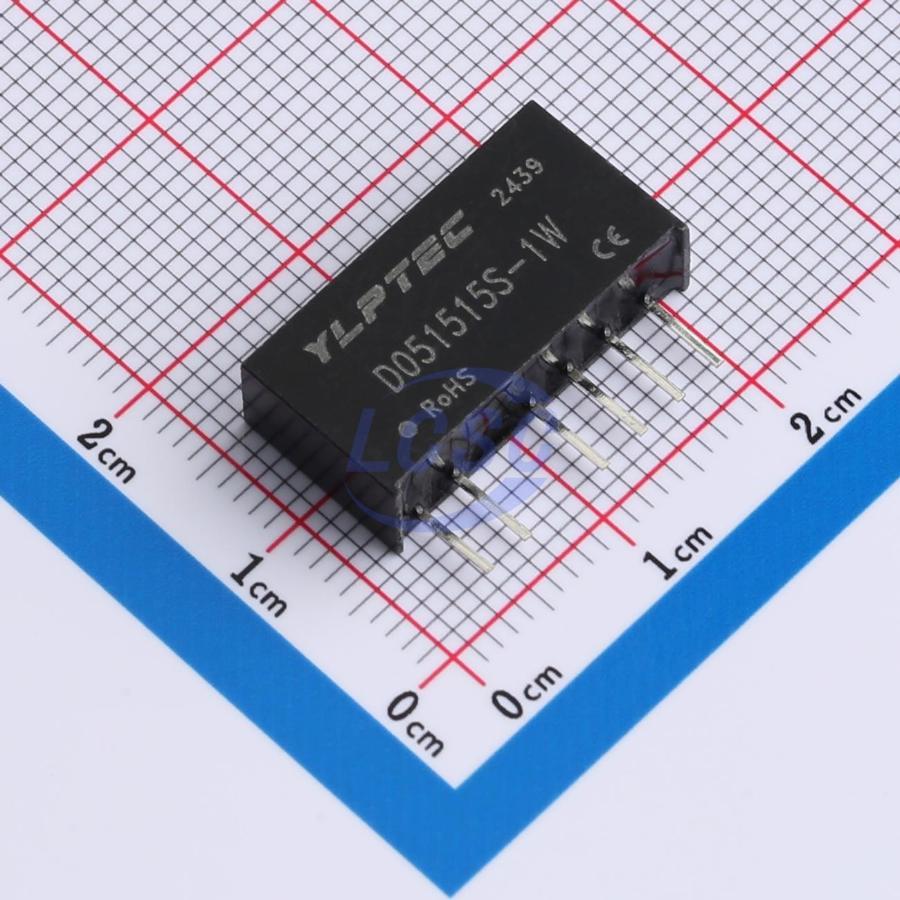

D051515S-1W
Isolated Module DC DC Converter Boost 2 Output 15V 33mA 4.5V~5.5V Input
DC/DC power module, fixed voltage input, isolated and unregulated, dual isolated and dual-channel output
- Manufacturer
- YLPTEC
- Manufacturer part #
- D051515S-1W
- Store part #
- C5369537
- Package / case
- SIP,19.5x6mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C5369537
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹414.19 | ₹414.19 |
| 10+ | ₹353.16 | ₹3,531.60 |
| 25+ | ₹316.88 | ₹7,922.00 |
| 100+ | ₹280.18 | ₹28,018.00 |
| 500+ | ₹263.24 | ₹1,31,620.00 |
| 1,000+ | ₹255.42 | ₹2,55,420.00 |
1 × ₹414.19
₹414.19
excl. GST
₹488.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
D051515S-1W
₹414.19 for 1 + GST
Specifications
- Output Voltage
- 15V
- Ripple Noise
- 60mVp-p
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- Capacitive Load(Max)
- 100uF
- Number of Outputs
- 2
- Iout
- 33mA
- Height
- 6mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Conversion Efficiency
- 82%
- Output Power
- 1W
- Features
- Short Circuit Protection
- Length
- 19.5mm
- Width
- 10mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.185 g
Overview
Regulated voltage input, isolated unregulated, dual isolated dual output
Applications
- Applications in distributed power systems requiring an isolated power rail from the input supply
- Applications where input supply voltage variation is within ±10%
- Applications requiring input-to-output isolation (isolation voltage 1000VDC)
- Applications with low requirements on output voltage regulation and output ripple noise
Key features
- Low quiescent current and high conversion efficiency
- Low ripple and low noise
- Built-in soft-start
- Isolation voltage 1500VDC
- Operating temperature range: -40°C to +85°C
