YLPTECDatasheet (PDF)

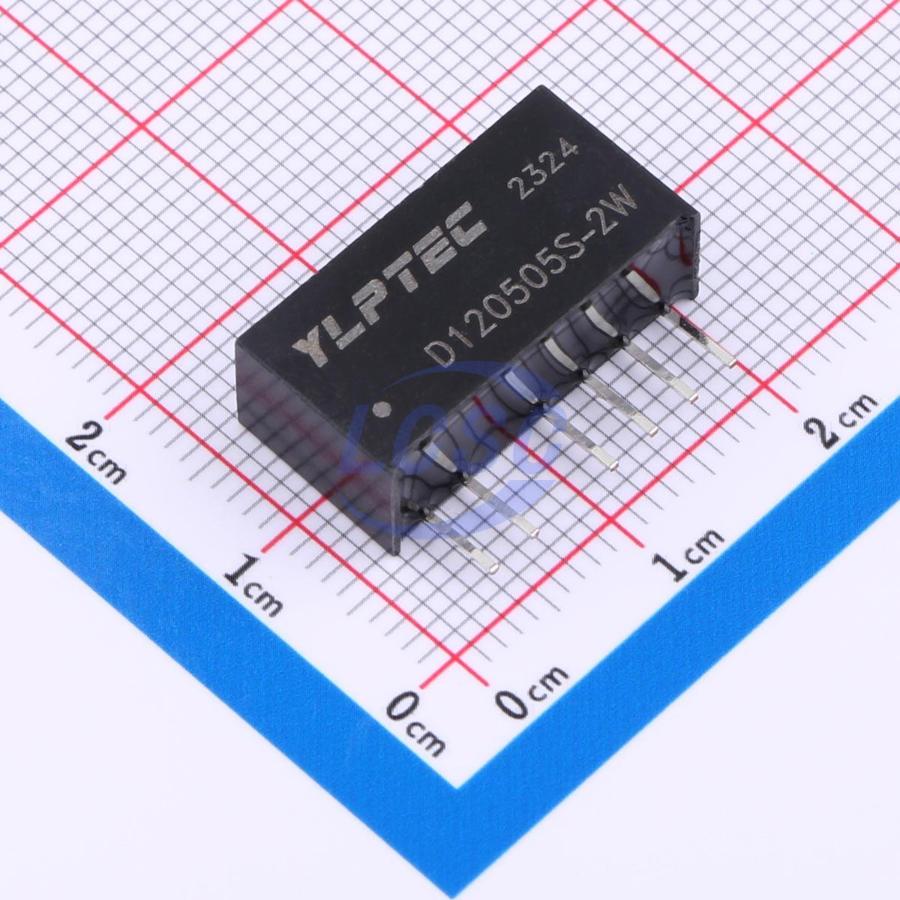

D120505S-2W
Isolated Module DC DC Converter Buck 2 Output 5V 200mA 10.8V~13.2V Input
SIP,19.5x7mmRoHSActive
DC/DC power module, fixed voltage input, isolated and unregulated, dual isolated and dual-channel output
- Manufacturer
- YLPTEC
- Manufacturer part #
- D120505S-2W
- Store part #
- C5369545
- Package / case
- SIP,19.5x7mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C5369545
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹446.21 | ₹446.21 |
| 10+ | ₹382.84 | ₹3,828.40 |
| 25+ | ₹345.29 | ₹8,632.25 |
| 100+ | ₹307.09 | ₹30,709.00 |
| 500+ | ₹289.51 | ₹1,44,755.00 |
| 1,000+ | ₹281.71 | ₹2,81,710.00 |
1 × ₹446.21
₹446.21
excl. GST
₹526.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
D120505S-2W
₹446.21 for 1 + GST
Specifications
- Output Voltage
- 5V
- Ripple Noise
- 100mVp-p
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 10.8V~13.2V
- Capacitive Load(Max)
- 100uF
- Number of Outputs
- 2
- Iout
- 200mA
- Height
- 9.5mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Conversion Efficiency
- 85%
- Features
- Short Circuit Protection
- Output Power
- 2W
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.364 g
Overview
Applications
- Applications in distributed power systems requiring an isolated power rail from the input supply
- Applications where input supply voltage variation is within ±10%
- Applications requiring input-to-output isolation (isolation voltage 1000VDC)
- Applications with low requirements on output voltage regulation and output ripple noise
Key features
- 7-pin SIP international standard pinout
- Low quiescent current and high conversion efficiency
- Low ripple factor and low noise
- Built-in soft-start technology
- Isolation voltage 1500VDC
- Operating temperature range: -40°C to +85°C
