DIODESDatasheet (PDF)

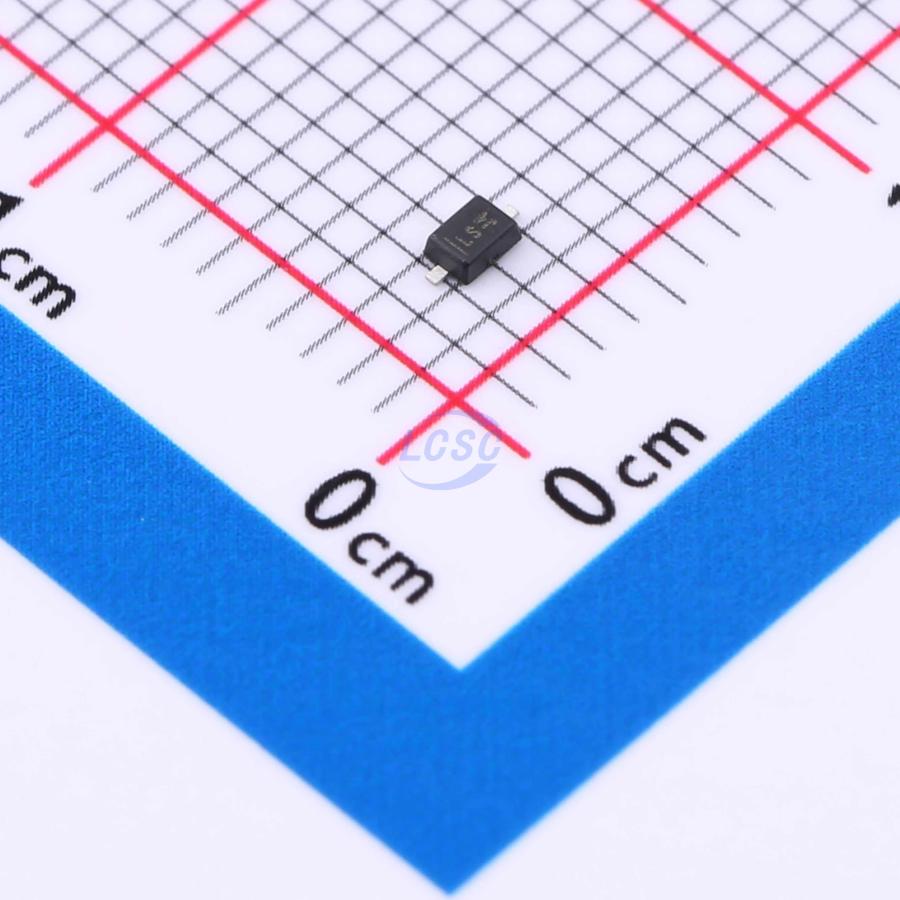

D3Z30BF-7
Zener Diode 29.94V 400mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 29.94V 400mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- D3Z30BF-7
- Store part #
- C3741959
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C3741959
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.17 | ₹71.70 |
| 100+ | ₹5.74 | ₹574.00 |
| 300+ | ₹5.03 | ₹1,509.00 |
| 3,000+ | ₹4.48 | ₹13,440.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.85 | ₹34,650.00 |
10 × ₹7.17
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D3Z30BF-7
₹71.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 50nA
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 29.19V~30.69V
- Zener Voltage(Nom)
- 29.94V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Key features
- 400mW Power Dissipation on FR - 4 PCB
- Very Tight Tolerance on VZ
- Ideally Suited for Automated Assembly Processes
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDZ30B,115#C552331Nexperia · SOD-323 | Nexperia | SOD-323 | 980 | ₹12.00 · 980 in stock | View |
 | MM3Z30BW#C2857023JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,500 | ₹2.69 · 2,500 in stock | View |
 | TDZ30J,115#C553829Nexperia · SOD-323F | Nexperia | SOD-323F | On request | ₹14.83 · 0 in stock | View |
| BZX384B30-E3-08#C241960VISHAY · SOD-323-2 | VISHAY | SOD-323-2 | 20 | ₹21.38 · 20 in stock | View | |
 | BZX384-B30-QX#C7508085Nexperia · SOD-323 | Nexperia | SOD-323 | 2,960 | ₹6.39 · 2,960 in stock | View |
