TIDatasheet (PDF)

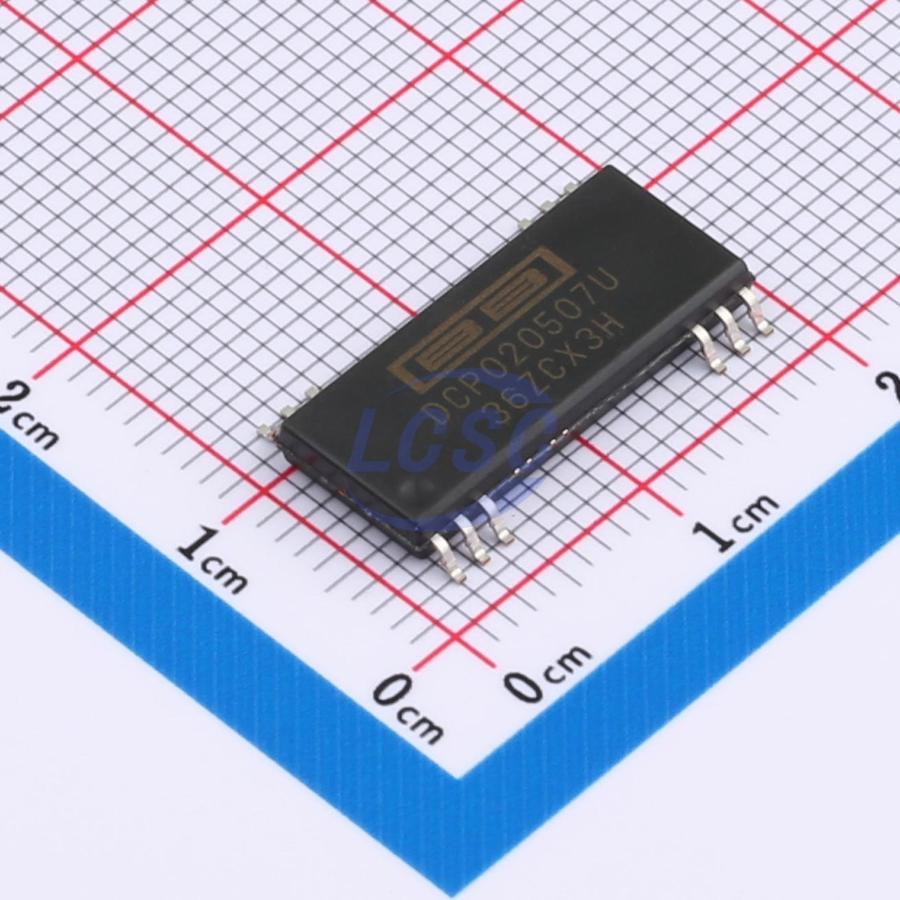

DCP020507U/1K
5V SOIC-12-300mil DC DC Converters RoHS
SOIC-12-300milROHS3 CompliantActive
2W, 1000V RMS isolated non-regulated DC/DC converter module
- Manufacturer
- TI
- Manufacturer part #
- DCP020507U/1K
- Store part #
- C2871667
- Package / case
- SOIC-12-300mil
- Category
- DC DC Converters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C2871667
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,274.58 | ₹3,274.58 |
| 10+ | ₹3,186.38 | ₹31,863.80 |
1 × ₹3,274.58
₹3,274.58
excl. GST
₹3,864.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
DCP020507U/1K
₹3,274.58 for 1 + GST
Specifications
- Ripple
- 20mV
- Iout
- 285mA
- Isolation voltage
- 1kV
- Frequency - Switching
- 400kHz
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 5V
- Features
- Frequency synchronization
- Output Power
- 2W
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.85 g
Overview
The DCP02 series of devices are a series of 2W isolated, unregulated DC/DC converter modules. The DCP02 series of devices feature on-chip device protection and require only a minimum number of external components to provide additional functions such as output disable and switching frequency synchronization. Combining these features with a small size, the DCP02 series of devices is well-suited for a wide range of applications and is an easy-to-use solution for applications that require signal path isolation.
Applications
- Signal path isolation
- Ground loop elimination
- Data acquisition
- Industrial control and instrumentation
- Test equipment
Key features
- 1kV isolation (working): 1-second test applies continuous voltage across isolation barrier: 60VDC/42.5VAC
- UL1950 certified components
- EN55022 Class B EMC performance
- 7-pin PDIP and 12-pin SOP packages
- Input voltage: 5V, 12V, 15V, or 24V
- Output voltage: 3.3V, ±5V, 7V, 9V, ±12V, or ±15V
- Inter-device synchronization
- Overtemperature protection
- Short-circuit protection
- High efficiency
