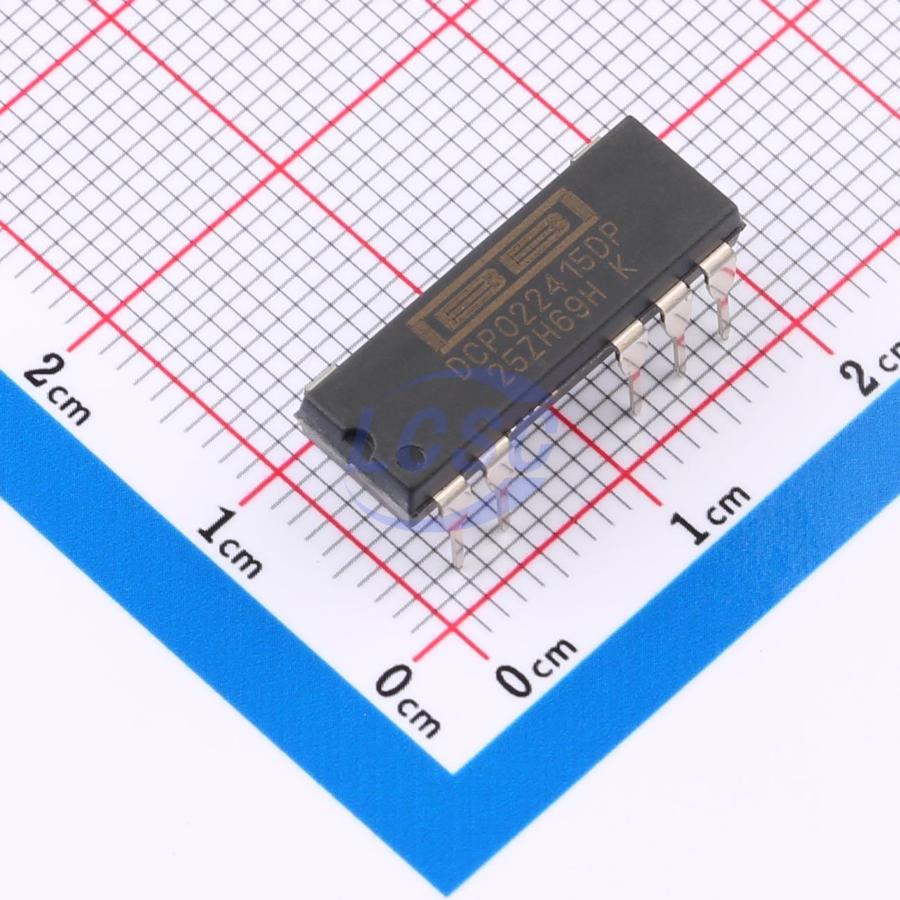

DCP022415DP

The DCP02 series of devices are a series of 2W isolated, unregulated DC/DC converter modules. The DCP02 series of devices feature on-chip device protection and require only a minimum number of external components to provide additional functions such as output disable and switching frequency synchronization. Combining these features with a small size, the DCP02 series of devices is well-suited for a wide range of applications and is an easy-to-use solution for applications that require signal path isolation.

Applications

• Signal path isolation
• Ground loop elimination
• Data acquisition
• Industrial control and instrumentation
• Test equipment

Key features

• 1kV isolation (working): 1-second test applies continuous voltage across isolation barrier: 60VDC/42.5VAC
• UL1950 certified components
• EN55022 Class B EMC performance
• 7-pin PDIP and 12-pin SOP packages
• Input voltage: 5V, 12V, 15V, or 24V
• Output voltage: 3.3V, ±5V, 7V, 9V, ±12V, or ±15V
• Inter-device synchronization
• Overtemperature protection
• Short-circuit protection
• High efficiency
