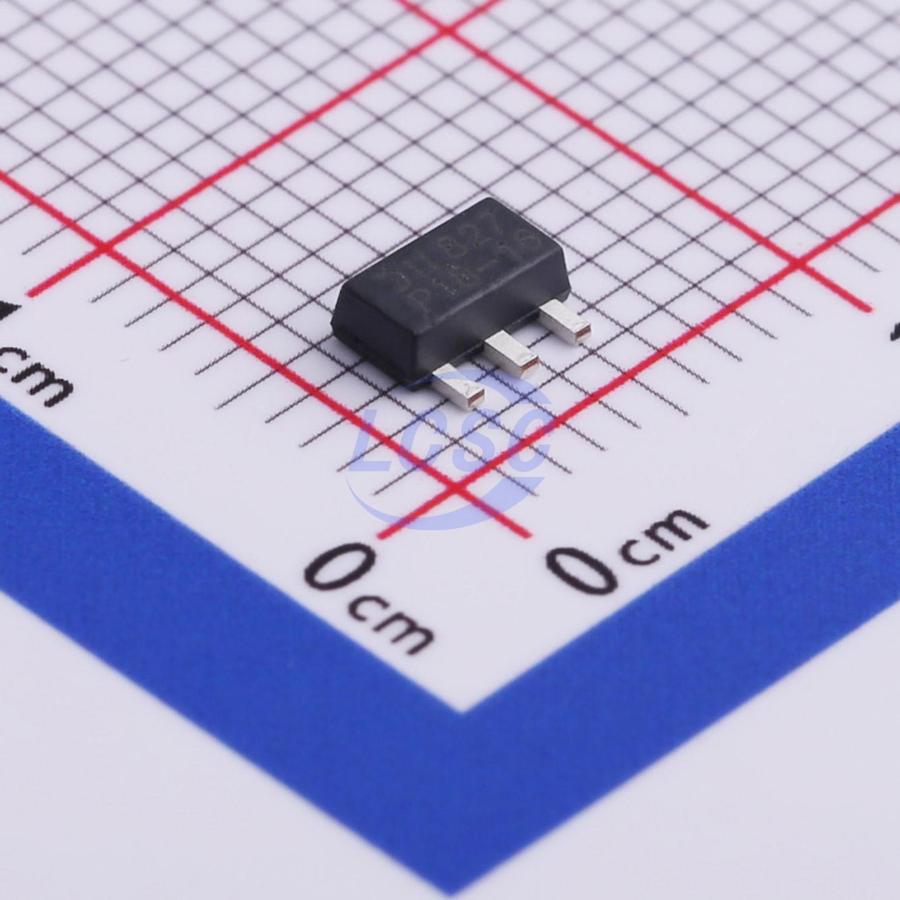

DCX53-16-13
Bipolar (BJT) Transistor PNP 80V 1A 200MHz 1W Surface Mount SOT-89-3L
SOT-89-3LROHS CompliantActive
TRANS PNP 80V 1A SOT-89-3L
- Manufacturer
- DIODES
- Manufacturer part #
- DCX53-16-13
- Store part #
- C508182
- Package / case
- SOT-89-3L
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,335 in stock
#C508182
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.65 | ₹123.25 |
| 50+ | ₹21.74 | ₹1,087.00 |
| 150+ | ₹20.48 | ₹3,072.00 |
| 500+ | ₹18.93 | ₹9,465.00 |
| 2,500+ | ₹18.24 | ₹45,600.00 |
| 5,000+ | ₹17.82 | ₹89,100.00 |
5 × ₹24.65
₹123.25
excl. GST
₹145.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DCX53-16-13
₹123.25 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 200MHz
- Collector - Emitter Voltage VCEO
- 80V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 100
- Pd - Power Dissipation
- 1W
- Current - Collector(Ic)
- 1A
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.086 g
Overview
Key features
- Epitaxial Planar Die Construction
- Complementary NPN Type Available (DCX56)
- Ideally Suited for Automated Assembly Processes
- Ideal for Medium Power Switching or Amplification Applications
- Lead Free By Design/RoHS Compliant
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SB1260T100Q#C308642ROHM · SOT-89 | ROHM | SOT-89 | 855 | ₹27.94 · 855 in stock | View |
 | BCX53-16#C42387168KUU · SOT-89 | KUU | SOT-89 | 1,000 | ₹3.52 · 1,000 in stock | View |
 | BCX53-16-TP#C668879MCC · SOT-89 | MCC | SOT-89 | 1,000 | ₹18.59 · 1,000 in stock | View |
 | BCX53-16#C489331KEXIN · SOT-89 | KEXIN | SOT-89 | 1,000 | ₹10.12 · 1,000 in stock | View |
 | BCX5316QTA#C526474DIODES · SOT-89 | DIODES | SOT-89 | 1,595 | ₹20.47 · 1,595 in stock | View |
