DIODESDatasheet (PDF)

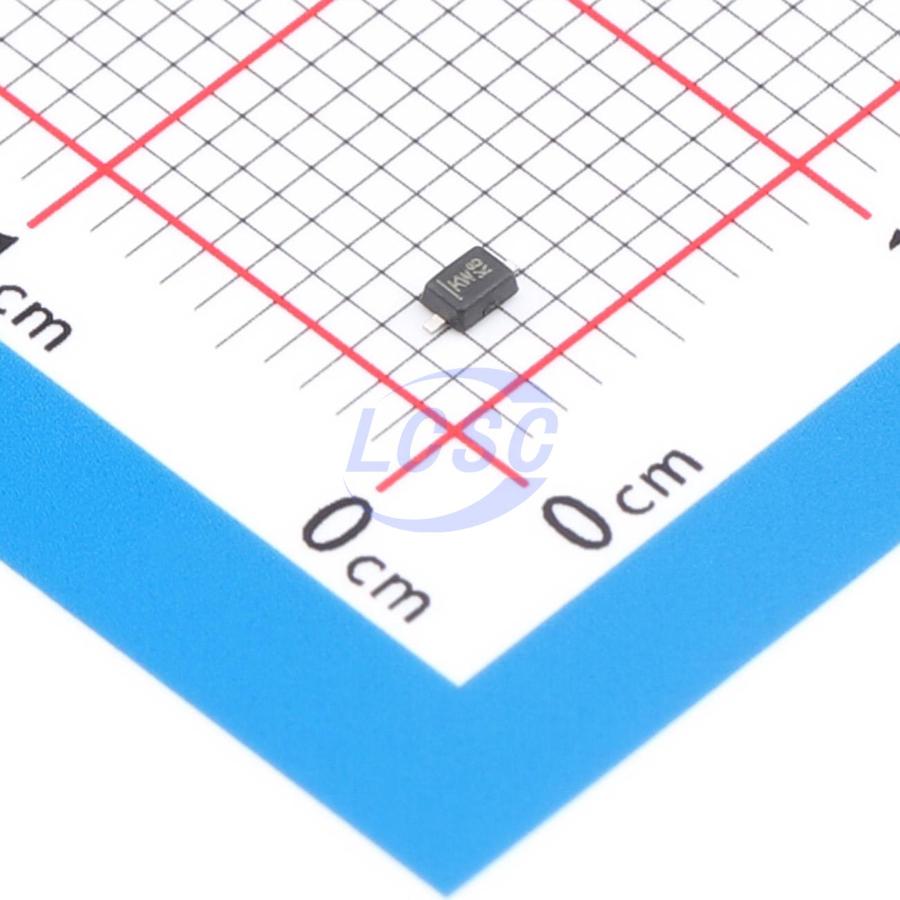

DDZ13BSF-7
1 Independent 12.55V~13.21V 12.88V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ13BSF-7
- Store part #
- C5712051
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C5712051
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.70 | ₹37.00 |
| 100+ | ₹3.64 | ₹364.00 |
| 300+ | ₹3.60 | ₹1,080.00 |
| 1,000+ | ₹3.56 | ₹3,560.00 |
10 × ₹3.70
₹37.00
excl. GST
₹43.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ13BSF-7
₹37.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 70nA@11.9V
- Impedance(Zzt)
- 35Ω
- Zener Voltage(Range)
- 12.55V~13.21V
- Zener Voltage(Nom)
- 12.88V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.009 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DDZ13BS-7#C780801DIODES · SOD-323 | DIODES | SOD-323 | 6 | ₹34.29 · 6 in stock | View | |
 | MM3Z13BW#C2857015JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,250 | ₹2.69 · 1,250 in stock | View |
 | MM3Z13-TD#C51902124TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,400 | ₹2.53 · 2,400 in stock | View |
 | BZT52B13S RRG#C485481Taiwan Semiconductor · SOD-323F | Taiwan Semiconductor | SOD-323F | 10 | ₹4.78 · 10 in stock | View |
 | BZT52C13S-TP#C2987035MCC · SOD-323 | MCC | SOD-323 | 1,860 | ₹8.22 · 1,860 in stock | View |
