DIODESDatasheet (PDF)

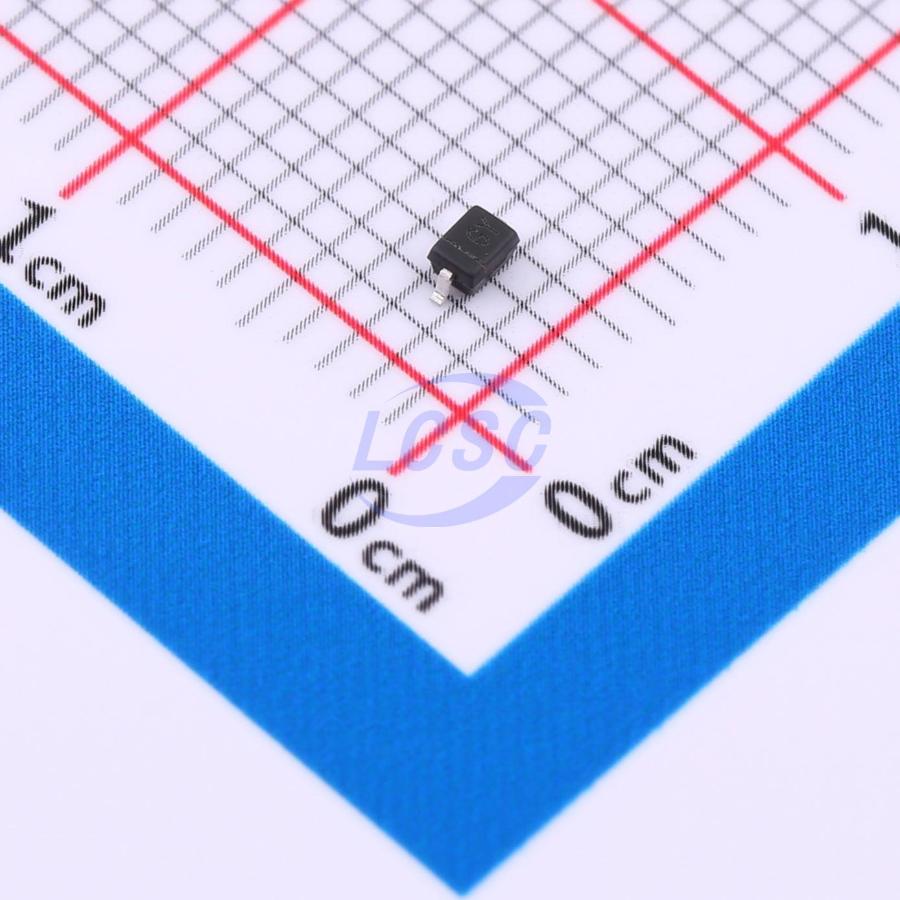

DDZ15S-7
Zener Diode 15V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 15V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ15S-7
- Store part #
- C5248774
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5248774
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.76 | ₹67.60 |
| 100+ | ₹6.67 | ₹667.00 |
| 300+ | ₹6.60 | ₹1,980.00 |
| 1,000+ | ₹6.54 | ₹6,540.00 |
10 × ₹6.76
₹67.60
excl. GST
₹79.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ15S-7
₹67.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 50nA@12V
- Impedance(Zzt)
- 18Ω
- Zener Voltage(Range)
- 14.8V~15.57V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.013 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- Very Tight Tolerance on VZ
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384B15-E3-18#C5359567VISHAY · SOD-323 | VISHAY | SOD-323 | 6,585 | ₹41.82 · 6,585 in stock | View |
 | LM3Z15VT1G#C131825LRC · SOD-323 | LRC | SOD-323 | 9,740 | ₹4.18 · 9,740 in stock | View |
 | MM3Z15#C216757Shikues · SOD-323 | Shikues | SOD-323 | 2,150 | ₹2.38 · 2,150 in stock | View |
 | AD-MMSZ5245BS#C2975590JSCJ · SOD-323 | JSCJ | SOD-323 | 60 | ₹5.28 · 60 in stock | View |
 | MMSZ5245BS#C41410799R+O · SOD-323 | R+O | SOD-323 | 250 | ₹2.63 · 250 in stock | View |
