DIODESDatasheet (PDF)

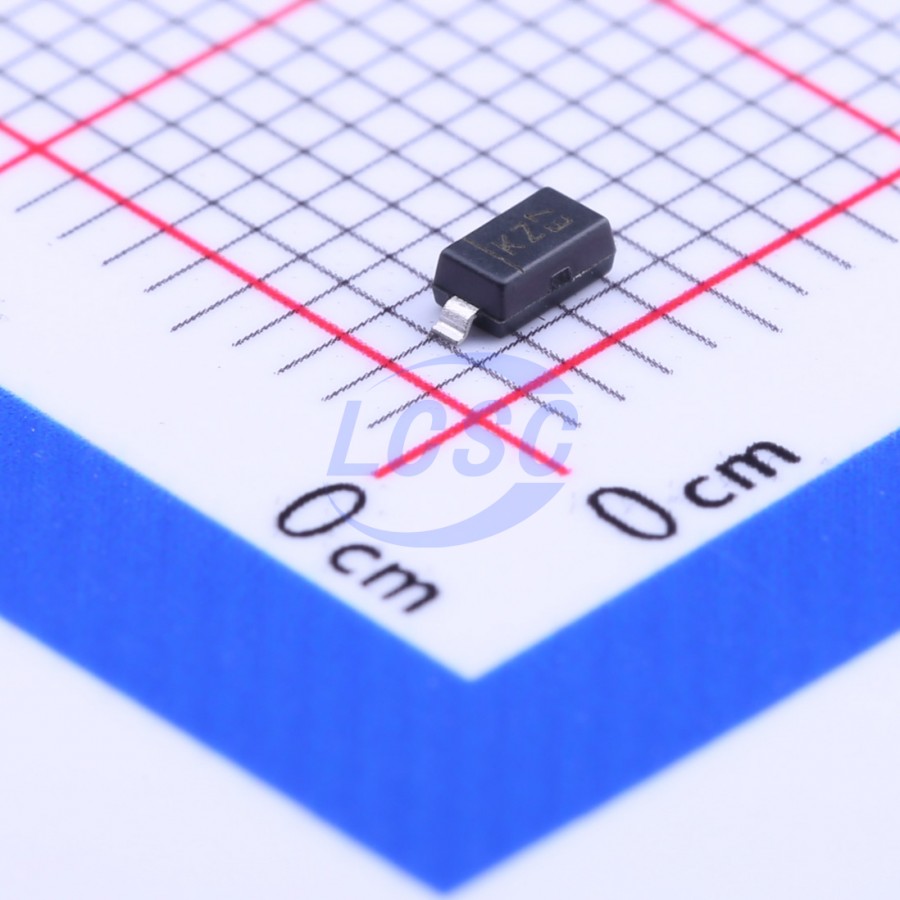

DDZ17-7
Zener Diode Independent 17V 470mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 17V 470mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ17-7
- Store part #
- C209348
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
580 in stock
#C209348
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹6.18 | ₹123.60 |
| 200+ | ₹5.07 | ₹1,014.00 |
| 600+ | ₹4.45 | ₹2,670.00 |
| 3,000+ | ₹4.07 | ₹12,210.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
| 21,000+ | ₹3.57 | ₹74,970.00 |
20 × ₹6.18
₹123.60
excl. GST
₹145.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ17-7
₹123.60 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 470mW
- Reverse Leakage Current (Ir)
- 50nA@14V
- Impedance(Zzt)
- 23Ω
- Zener Voltage(Range)
- 16.82V~17.7V
- Zener Voltage(Nom)
- 17V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Key features
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ17Q-7#C2974175DIODES · SOD-123 | DIODES | SOD-123 | 5 | ₹15.94 · 5 in stock | View |
 | DDZ18CQ-7#C672073DIODES · SOD-123 | DIODES | SOD-123 | 10 | ₹8.36 · 10 in stock | View |
 | DDZ9704-7#C460863DIODES · SOD-123 | DIODES | SOD-123 | 1,430 | ₹12.82 · 1,430 in stock | View |
| MMSZ4704-E3-08#C6909537VISHAY · SOD-123 | VISHAY | SOD-123 | 2,890 | ₹16.70 · 2,890 in stock | View | |
 | MMSZ4704T1G#C236110onsemi · SOD-123 | onsemi | SOD-123 | 5 | ₹6.93 · 5 in stock | View |
