DIODESDatasheet (PDF)

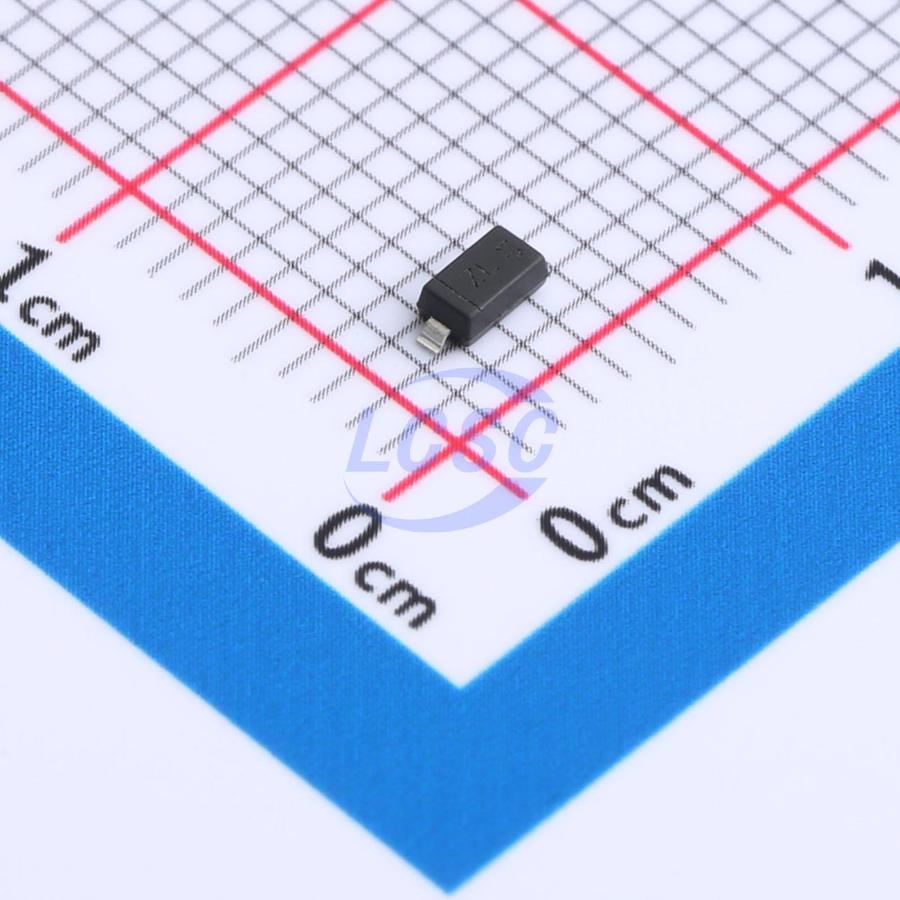

DDZ23-7
Zener Diode Independent 23.2V 470mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 23.2V 470mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ23-7
- Store part #
- C5244821
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C5244821
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.71 | ₹471.00 |
| 300+ | ₹4.13 | ₹1,239.00 |
| 3,000+ | ₹3.69 | ₹11,070.00 |
| 6,000+ | ₹3.33 | ₹19,980.00 |
| 9,000+ | ₹3.16 | ₹28,440.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ23-7
₹58.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 470mW
- Reverse Leakage Current (Ir)
- 50nA@19V
- Impedance(Zzt)
- 35Ω
- Zener Voltage(Range)
- 22.61V~23.77V
- Zener Voltage(Nom)
- 23.2V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
Key features
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ24C-7#C460849DIODES · SOD-123 | DIODES | SOD-123 | 120 | ₹5.44 · 120 in stock | View |
 | DDZ9709-7#C2759897DIODES · SOD-123 | DIODES | SOD-123 | 10 | ₹7.50 · 10 in stock | View |
 | LMSZ5252BT1G#C131737LRC · SOD-123 | LRC | SOD-123 | 3,050 | ₹2.30 · 3,050 in stock | View |
 | MMSZ5252B#C19077432R+O · SOD-123 | R+O | SOD-123 | 54,750 | ₹2.80 · 54,750 in stock | View |
 | MMSZ5252B#C20602099YANGJIE · SOD-123 | YANGJIE | SOD-123 | 5,880 | ₹3.32 · 5,880 in stock | View |
