DIODESDatasheet (PDF)

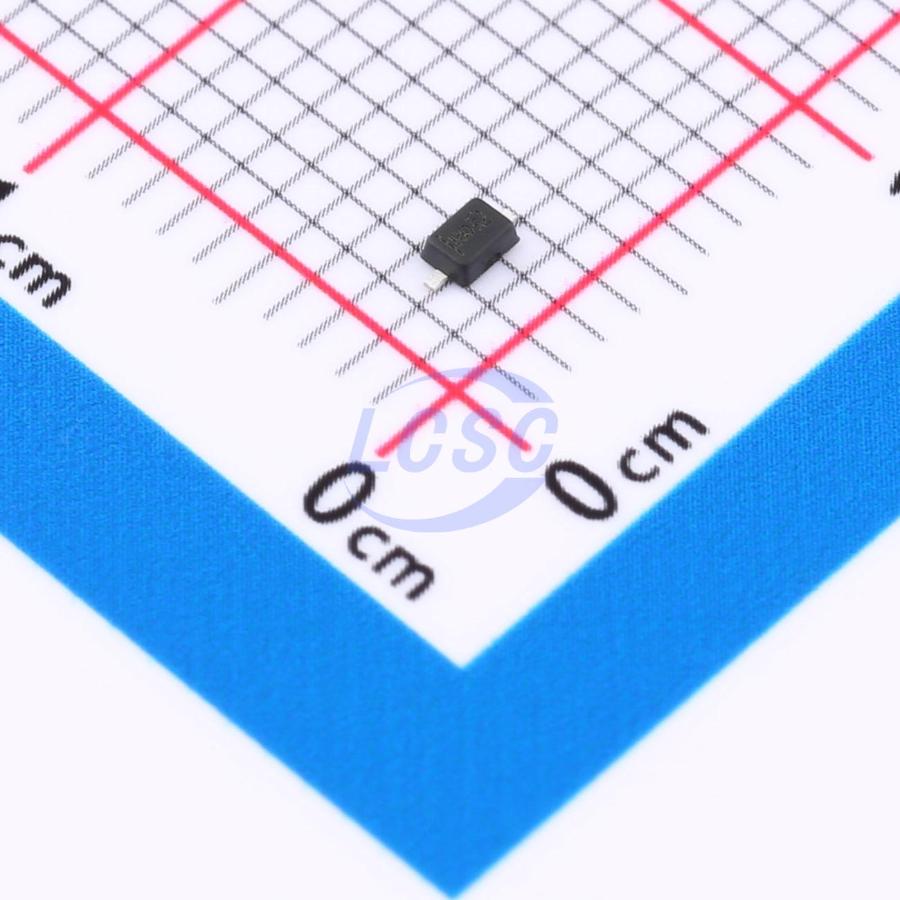

DDZ33ASF-7
1 Independent 29.68V~31.22V 30.45V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
DIODE ZENER 30.45V 500mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ33ASF-7
- Store part #
- C5667999
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C5667999
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.87 | ₹58.70 |
| 100+ | ₹5.76 | ₹576.00 |
| 300+ | ₹5.66 | ₹1,698.00 |
| 1,000+ | ₹5.58 | ₹5,580.00 |
10 × ₹5.87
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ33ASF-7
₹58.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 70nA@28.2V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 29.68V~31.22V
- Zener Voltage(Nom)
- 30.45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on VZ
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ33BSF-7#C5199760DIODES · SOD-323F | DIODES | SOD-323F | 190 | ₹7.82 · 190 in stock | View |
 | MM3Z33VT1G-TP#C46641636TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,150 | ₹2.01 · 2,150 in stock | View |
 | DDZ33CSF-7#C6224736DIODES · SOD-323F | DIODES | SOD-323F | 20 | ₹4.09 · 20 in stock | View |
| BZX384-A30-QX#C7508025Nexperia · SOD-323 | Nexperia | SOD-323 | 11,635 | ₹23.32 · 11,635 in stock | View | |
 | MM3Z30BW#C2857023JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,500 | ₹2.69 · 2,500 in stock | View |
