DIODESDatasheet (PDF)

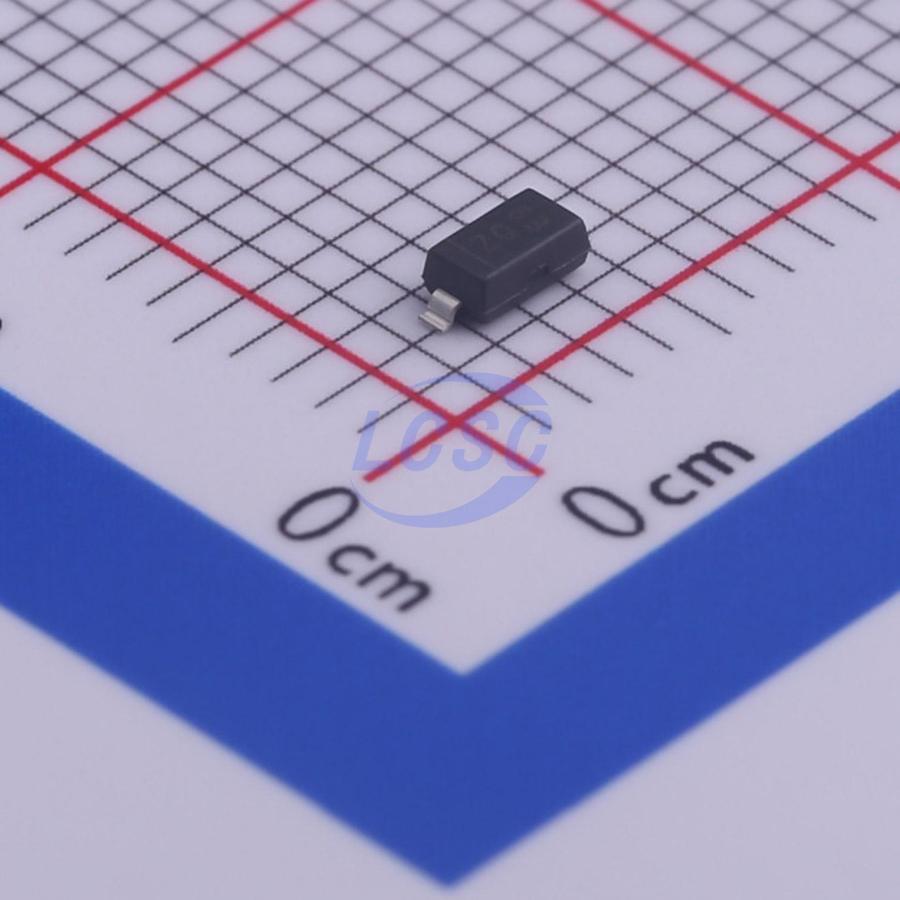

DDZ36-7
Zener Diode Independent 36V Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 36V SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ36-7
- Store part #
- C444414
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,220 in stock
#C444414
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.46 | ₹54.60 |
| 100+ | ₹4.34 | ₹434.00 |
| 300+ | ₹3.77 | ₹1,131.00 |
| 3,000+ | ₹3.35 | ₹10,050.00 |
| 6,000+ | ₹3.02 | ₹18,120.00 |
| 9,000+ | ₹2.84 | ₹25,560.00 |
10 × ₹5.46
₹54.60
excl. GST
₹64.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ36-7
₹54.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 470mW
- Reverse Leakage Current (Ir)
- 50nA@30V
- Impedance(Zzt)
- 85Ω
- Zener Voltage(Range)
- 35.36V~37.19V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Overview
Key features
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ36Q-7#C5244832DIODES · SOD-123 | DIODES | SOD-123 | 100 | ₹8.10 · 100 in stock | View |
 | BZT52C36#C19077420R+O · SOD-123 | R+O | SOD-123 | 1,23,710 | ₹2.30 · 1,23,710 in stock | View |
 | BZT52B36 RHG#C3028976Taiwan Semiconductor · SOD-123F | Taiwan Semiconductor | SOD-123F | 1,940 | ₹5.73 · 1,940 in stock | View |
 | MMSZ36T1G#C236212onsemi · SOD-123 | onsemi | SOD-123 | 80 | ₹4.64 · 80 in stock | View |
 | BZT52C36#C5353050FOSAN · SOD-123 | FOSAN | SOD-123 | 2,950 | ₹1.87 · 2,950 in stock | View |
