DIODESDatasheet (PDF)

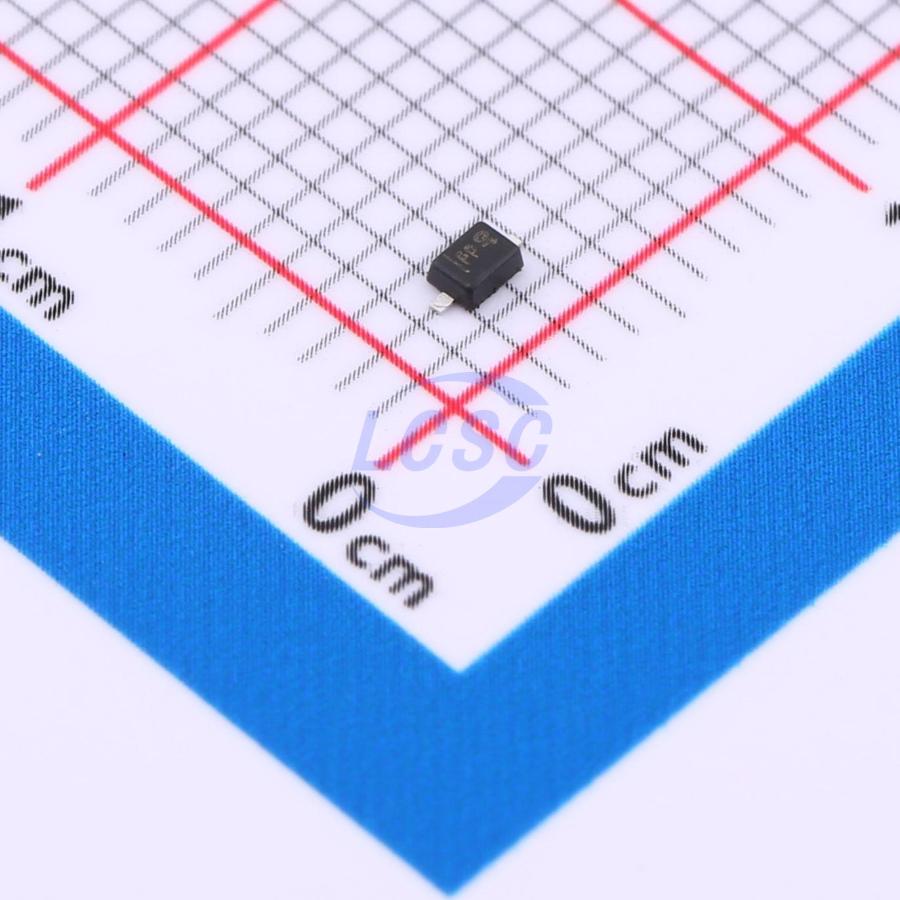

DDZ36CSF-7
Zener Diode 34.27V 500mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 34.27V 500mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ36CSF-7
- Store part #
- C6224738
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C6224738
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.82 | ₹38.20 |
| 100+ | ₹3.74 | ₹374.00 |
| 300+ | ₹3.69 | ₹1,107.00 |
| 1,000+ | ₹3.64 | ₹3,640.00 |
10 × ₹3.82
₹38.20
excl. GST
₹45.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ36CSF-7
₹38.20 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 70nA@31.70V
- Impedance(Zzt)
- 75Ω
- Zener Voltage(Range)
- 33.4V~35.13V
- Zener Voltage(Nom)
- 34.27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UFZVTE-1736B#C6582011ROHM · SC-90(SOD-323F) | ROHM | SC-90(SOD-323F) | 10 | ₹11.01 · 10 in stock | View |
 | BZT52C33S#C5353080FOSAN · SOD-323 | FOSAN | SOD-323 | 5,600 | ₹2.02 · 5,600 in stock | View |
 | DDZ33S-7#C5248779DIODES · SOD-323 | DIODES | SOD-323 | 90 | ₹8.75 · 90 in stock | View |
 | BZT52B33JS-TP#C914287MCC · SOD-323 | MCC | SOD-323 | 10 | ₹71.57 · 10 in stock | View |
 | DDZ33CSF-7#C6224736DIODES · SOD-323F | DIODES | SOD-323F | 20 | ₹4.09 · 20 in stock | View |
