DIODESDatasheet (PDF)

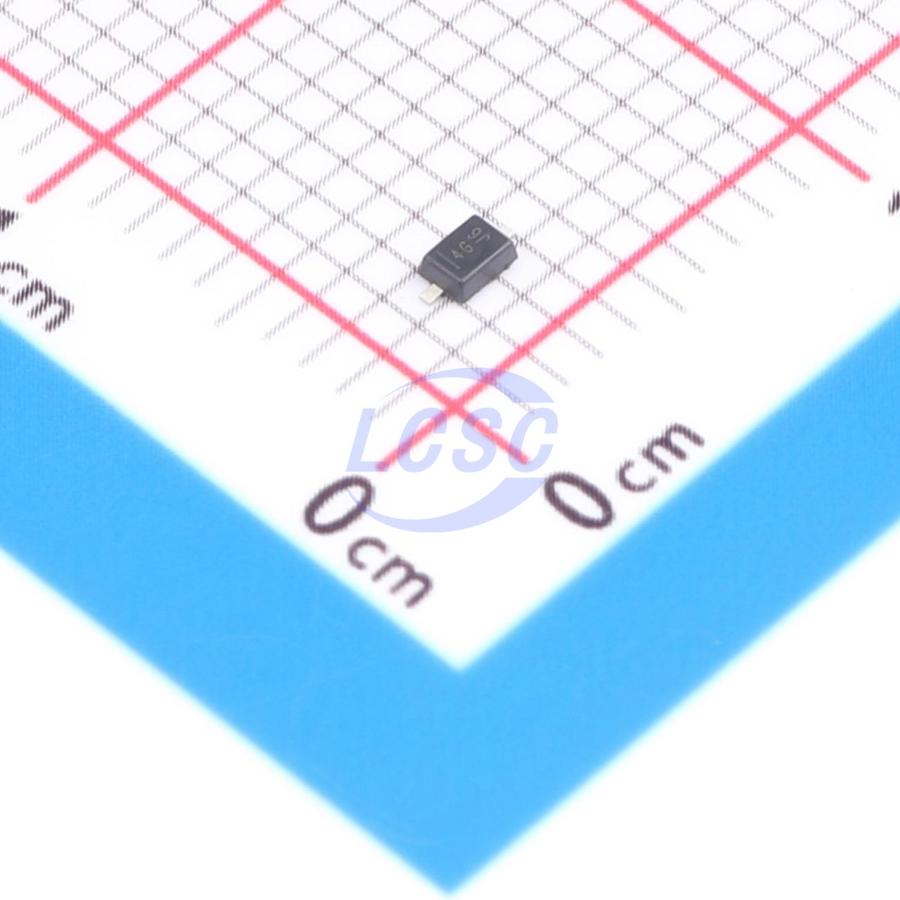

DDZ3V3ASF-7
Zener Diode 3.27V 500mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 3.27V 500mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ3V3ASF-7
- Store part #
- C460851
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,205 in stock
#C460851
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.24 | ₹161.20 |
| 50+ | ₹25.19 | ₹1,259.50 |
| 150+ | ₹22.16 | ₹3,324.00 |
| 500+ | ₹18.39 | ₹9,195.00 |
| 3,000+ | ₹16.71 | ₹50,130.00 |
| 6,000+ | ₹15.70 | ₹94,200.00 |
5 × ₹32.24
₹161.20
excl. GST
₹190.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ3V3ASF-7
₹161.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 20uA@1V
- Impedance(Zzt)
- 130Ω
- Zener Voltage(Range)
- 3.16V~3.38V
- Zener Voltage(Nom)
- 3.27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z3V3T1G-TP#C46641621TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 1,600 | ₹2.12 · 1,600 in stock | View |
 | MM3Z3V3BW#C20623236YFW · SOD-323 | YFW | SOD-323 | 1,500 | ₹3.44 · 1,500 in stock | View |
 | MM3Z3V3BW#C2857007JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 8,600 | ₹2.73 · 8,600 in stock | View |
 | MM3Z3V3-TD#C51902109TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,700 | ₹2.35 · 2,700 in stock | View |
 | PDZ3.3B,115-JSM#C53114049JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,800 | ₹2.77 · 1,800 in stock | View |
