DIODESDatasheet (PDF)

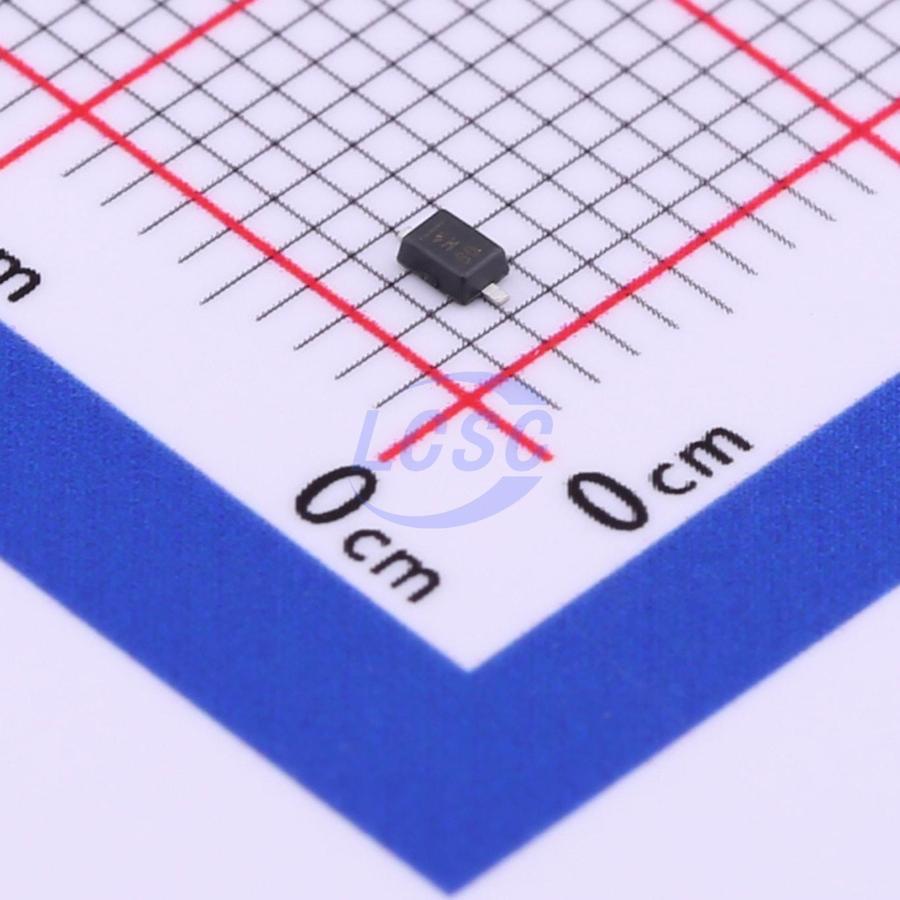

DDZ3V6ASF-7
Zener Diode Independent 3.57V 500mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 3.57V 500mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ3V6ASF-7
- Store part #
- C560270
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C560270
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.24 | ₹72.40 |
| 100+ | ₹5.70 | ₹570.00 |
| 300+ | ₹4.95 | ₹1,485.00 |
| 3,000+ | ₹4.14 | ₹12,420.00 |
| 6,000+ | ₹3.69 | ₹22,140.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 130Ω
- Zener Voltage(Range)
- 3.45V~3.69V
- Zener Voltage(Nom)
- 3.57V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z3V6BW#C2857008JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,000 | ₹2.94 · 2,000 in stock | View |
 | MM3Z3V6BW#C4749041Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 1,250 | ₹2.62 · 1,250 in stock | View |
 | MM3Z3V6-TD#C51902110TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 5,750 | ₹2.50 · 5,750 in stock | View |
 | MM3Z3V6#C12453ST(Semtech) · SOD-323 | ST(Semtech) | SOD-323 | 9,850 | ₹2.62 · 9,850 in stock | View |
 | MM3Z3V6-MS#C22459409MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 100 | ₹2.17 · 100 in stock | View |
