DIODESDatasheet (PDF)

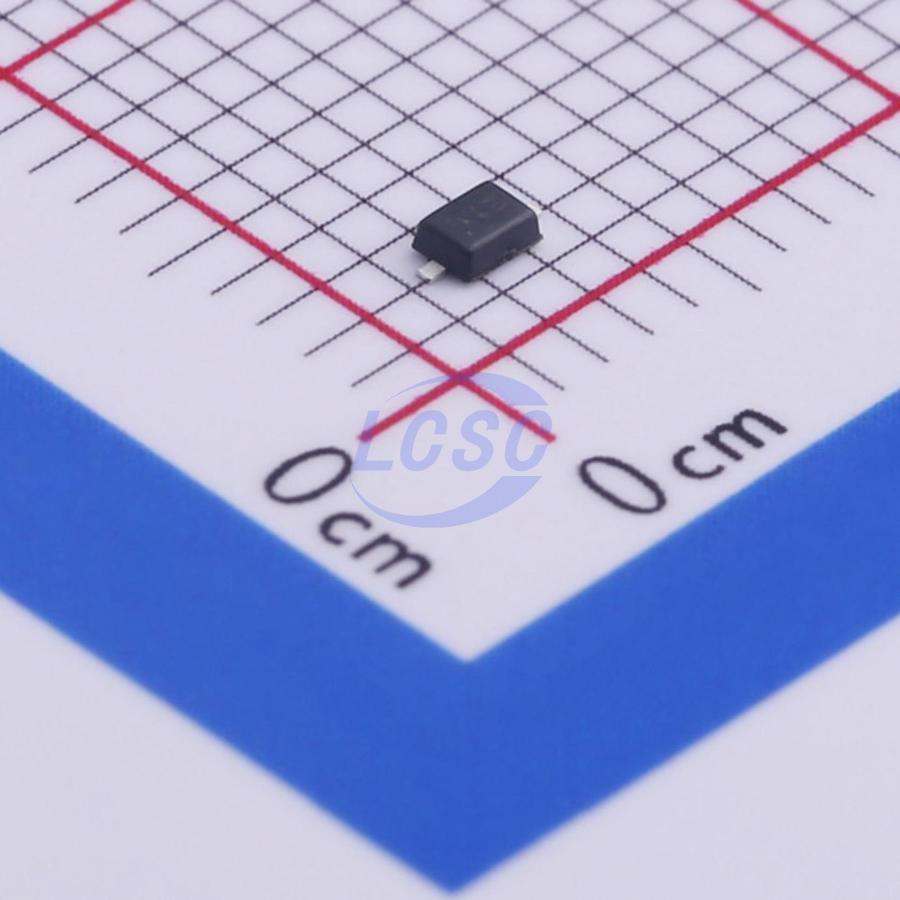

DDZ7V5BSF-7
Zener Diode Independent 7.26V 500mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 7.26V 500mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ7V5BSF-7
- Store part #
- C460202
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,830 in stock
#C460202
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.24 | ₹62.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 3,000+ | ₹3.90 | ₹11,700.00 |
| 6,000+ | ₹3.53 | ₹21,180.00 |
| 9,000+ | ₹3.35 | ₹30,150.00 |
10 × ₹6.24
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ7V5BSF-7
₹62.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 7.5uA@4V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 7.07V~7.45V
- Zener Voltage(Nom)
- 7.26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.015 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ6V8CSF-7#C5248785DIODES · SOD-323F | DIODES | SOD-323F | 2,890 | ₹7.71 · 2,890 in stock | View |
 | UDZ7V5B-7#C445011DIODES · SOD-323 | DIODES | SOD-323 | 90 | ₹8.60 · 90 in stock | View |
 | UDZSTE-177.5B#C162079ROHM · SOD-323FL | ROHM | SOD-323FL | 260 | ₹5.82 · 260 in stock | View |
 | LUDZS7.5BT1G#C417299LRC · SOD-323 | LRC | SOD-323 | 840 | ₹2.84 · 840 in stock | View |
 | MM3Z7V5BW#C3027196Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 1,000 | ₹2.26 · 1,000 in stock | View |
