DIODESDatasheet (PDF)

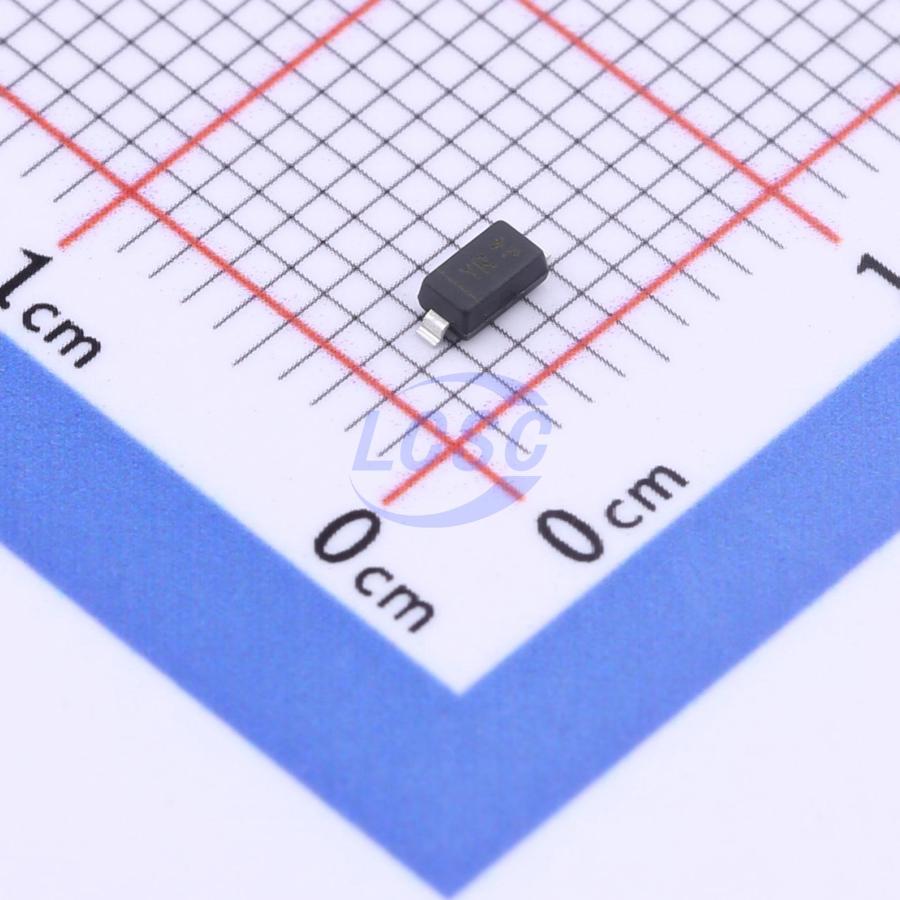

DDZ8V2CQ-7
Zener Diode 8.2V 310mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 8.2V 310mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ8V2CQ-7
- Store part #
- C2960353
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
470 in stock
#C2960353
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.19 | ₹61.90 |
| 100+ | ₹4.95 | ₹495.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 3,000+ | ₹3.86 | ₹11,580.00 |
| 6,000+ | ₹3.49 | ₹20,940.00 |
| 9,000+ | ₹3.31 | ₹29,790.00 |
10 × ₹6.19
₹61.90
excl. GST
₹73.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ8V2CQ-7
₹61.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 310mW
- Reverse Leakage Current (Ir)
- 100nA@6.5V
- Impedance(Zzt)
- 8Ω
- Zener Voltage(Range)
- 7.78V~8.19V
- Zener Voltage(Nom)
- 8.2V
- Impedance(Zzk)
- 120Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Key features
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ8V2B-7#C780806DIODES · SOD-123 | DIODES | SOD-123 | 590 | ₹7.57 · 590 in stock | View |
 | BZT52-C8V2_R1_00001#C263158PANJIT · SOD-123 | PANJIT | SOD-123 | 1,120 | ₹3.27 · 1,120 in stock | View |
 | DDZ8V2C-7#C445498DIODES · SOD-123 | DIODES | SOD-123 | 30 | ₹18.34 · 30 in stock | View |
 | LBZT52MB8V2T1G#C5266930LRC · SOD-123 | LRC | SOD-123 | 610 | ₹5.44 · 610 in stock | View |
| MMSZ5237B#C21714201CBI · SOD-123 | CBI | SOD-123 | 2,950 | ₹1.96 · 2,950 in stock | View | |
