DIODESDatasheet (PDF)

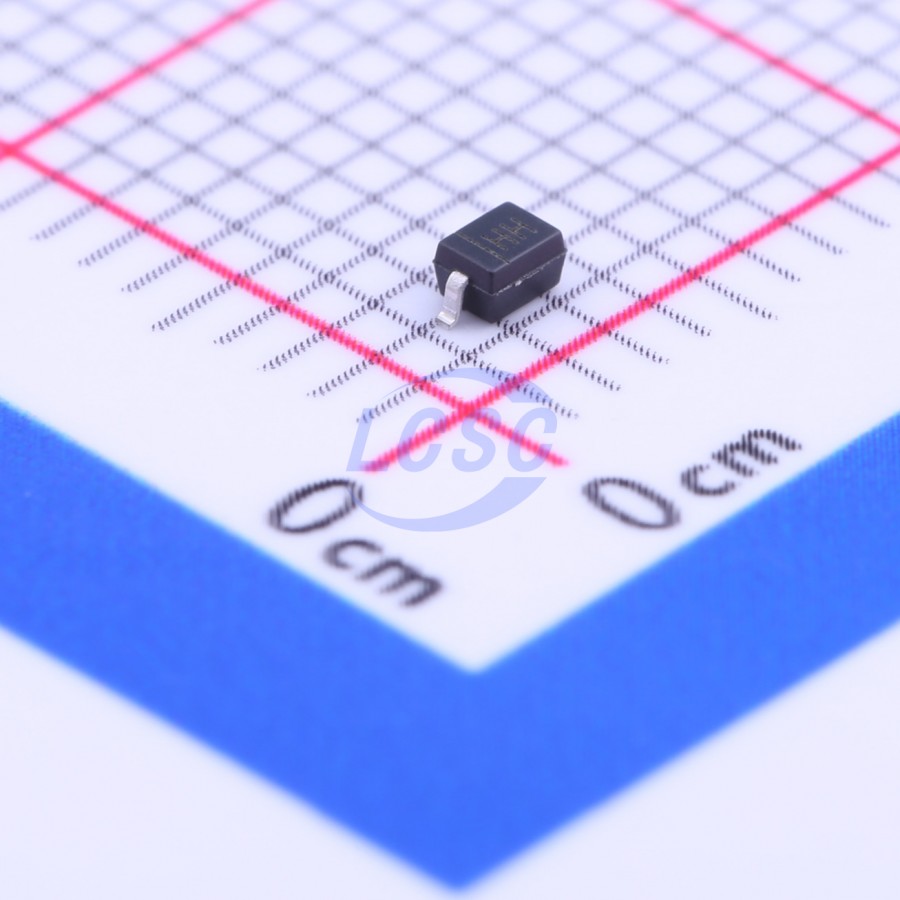

DDZ9689S-7
Zener Diode Independent 5.1V 200mW Surface Mount SOD-323
SOD-323ROHS CompliantActive
DIODE ZENER 5.1V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ9689S-7
- Store part #
- C151595
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
250 in stock
#C151595
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.35 | ₹93.50 |
| 100+ | ₹7.47 | ₹747.00 |
| 300+ | ₹6.55 | ₹1,965.00 |
| 3,000+ | ₹5.85 | ₹17,550.00 |
| 6,000+ | ₹5.29 | ₹31,740.00 |
| 9,000+ | ₹5.00 | ₹45,000.00 |
10 × ₹9.35
₹93.50
excl. GST
₹110.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ9689S-7
₹93.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 5uA@3V
- Zener Voltage(Range)
- 4.85V~5.36V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- Very Tight Tolerance on VZ
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Lead Free By Design/RuHS Compliant
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5231BS-7-F#C435914DIODES · SOD-323 | DIODES | SOD-323 | 5,080 | ₹10.66 · 5,080 in stock | View |
 | MMSZ5231BS#C5277976MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 2,680 | ₹3.57 · 2,680 in stock | View |
 | MMSZ5231BS#C22395562R+O · SOD-323 | R+O | SOD-323 | 3,060 | ₹2.66 · 3,060 in stock | View |
 | MMSZ5231BS#C51315462CBI · SOD-323 | CBI | SOD-323 | 2,700 | ₹2.08 · 2,700 in stock | View |
 | BZT52C5V1SQ#C2857109JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 8,550 | ₹2.47 · 8,550 in stock | View |
