DIODESDatasheet (PDF)

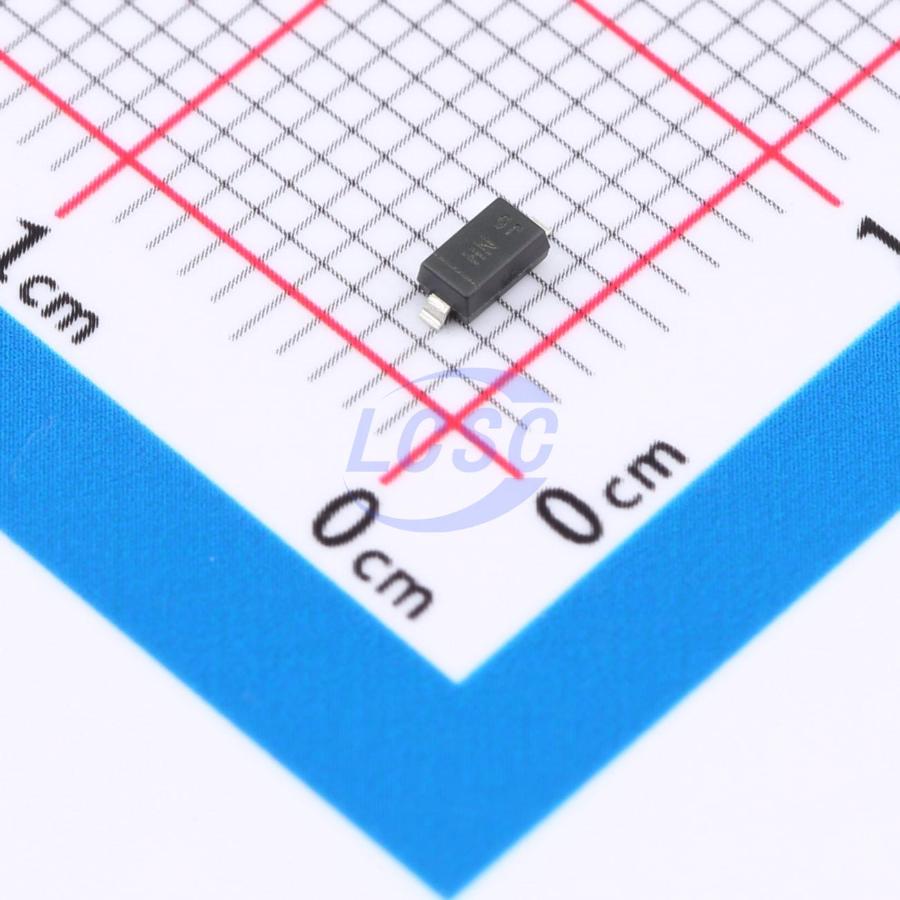

DDZ9694-7
Zener Diode Independent 8.2V 500mW Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE ZENER 8.2V 500mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ9694-7
- Store part #
- C151594
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,730 in stock
#C151594
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.96 | ₹109.80 |
| 50+ | ₹19.37 | ₹968.50 |
| 150+ | ₹18.26 | ₹2,739.00 |
| 500+ | ₹16.88 | ₹8,440.00 |
| 3,000+ | ₹16.26 | ₹48,780.00 |
| 6,000+ | ₹15.89 | ₹95,340.00 |
5 × ₹21.96
₹109.80
excl. GST
₹129.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ9694-7
₹109.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@6.2V
- Zener Voltage(Range)
- 7.79V~8.61V
- Zener Voltage(Nom)
- 8.2V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C8V2#C19077406R+O · SOD-123 | R+O | SOD-123 | 3,72,850 | ₹2.41 · 3,72,850 in stock | View |
 | TPZ8V2C-123#C46472896TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,400 | ₹2.67 · 2,400 in stock | View |
 | BZT52C8V2#C19267772HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 400 | ₹1.73 · 400 in stock | View |
| MMSZ5237BQ#C20168715YANGJIE · SOD-123 | YANGJIE | SOD-123 | 2,320 | ₹4.71 · 2,320 in stock | View | |
 | MMSZ5237B#C20602074YANGJIE · SOD-123 | YANGJIE | SOD-123 | 240 | ₹2.82 · 240 in stock | View |
