DIODESDatasheet (PDF)

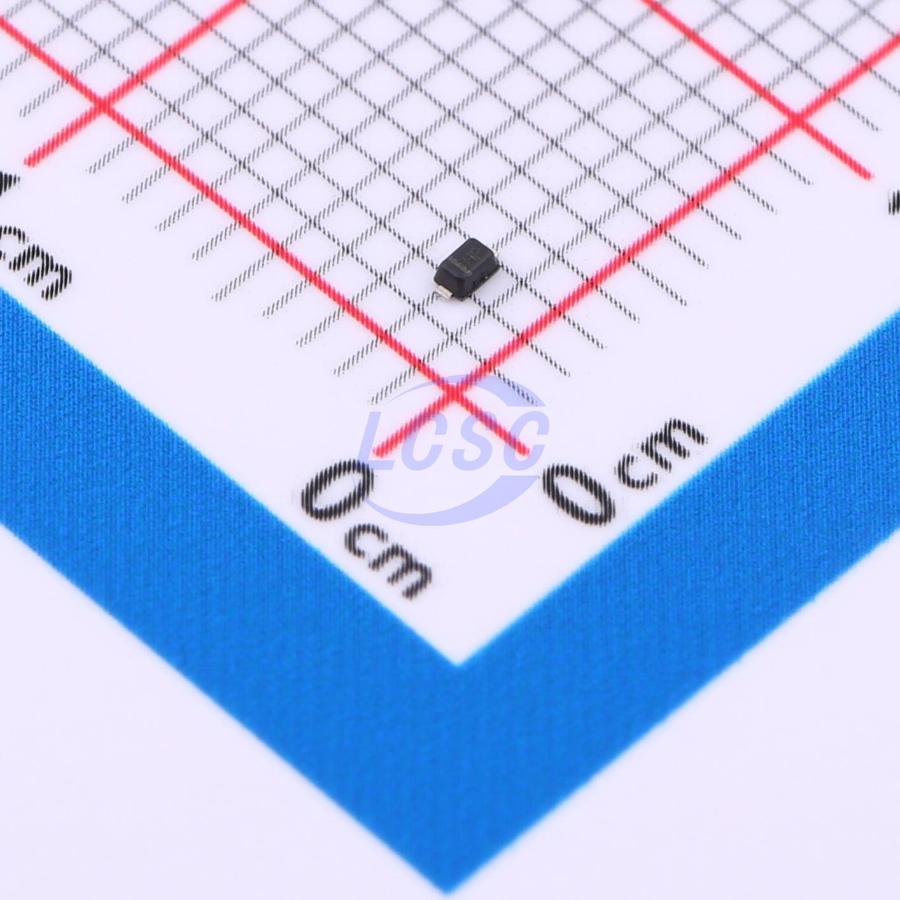

DDZ9696T-7
Zener Diode 9.1V 150mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 9.1V 150mW SOD-523
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ9696T-7
- Store part #
- C7264866
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C7264866
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.16 | ₹71.60 |
| 100+ | ₹5.73 | ₹573.00 |
| 300+ | ₹5.01 | ₹1,503.00 |
| 3,000+ | ₹4.47 | ₹13,410.00 |
| 6,000+ | ₹4.05 | ₹24,300.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.16
₹71.60
excl. GST
₹84.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ9696T-7
₹71.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 150mW
- Reverse Leakage Current (Ir)
- 100nA@6.9V
- Zener Voltage(Range)
- 8.65V~9.56V
- Zener Voltage(Nom)
- 9.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.009 g
Overview
Key features
- Small, Low Profile Surface Mount Package
- Very Sharp Breakdown Characteristics
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPZ9V1C-523#C46641663TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,100 | ₹2.37 · 2,100 in stock | View |
 | BZX584C9V1#C19077465R+O · SOD-523 | R+O | SOD-523 | 1,980 | ₹2.86 · 1,980 in stock | View |
 | BZX584C9V1#C2910113JSCJ · SOD-523 | JSCJ | SOD-523 | 28,260 | ₹3.90 · 28,260 in stock | View |
 | BZX584C9V1#C46641690TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,550 | ₹2.26 · 2,550 in stock | View |
 | MM5Z9V1T1G-TP#C46641717TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,300 | ₹2.26 · 2,300 in stock | View |
