DIODESDatasheet (PDF)

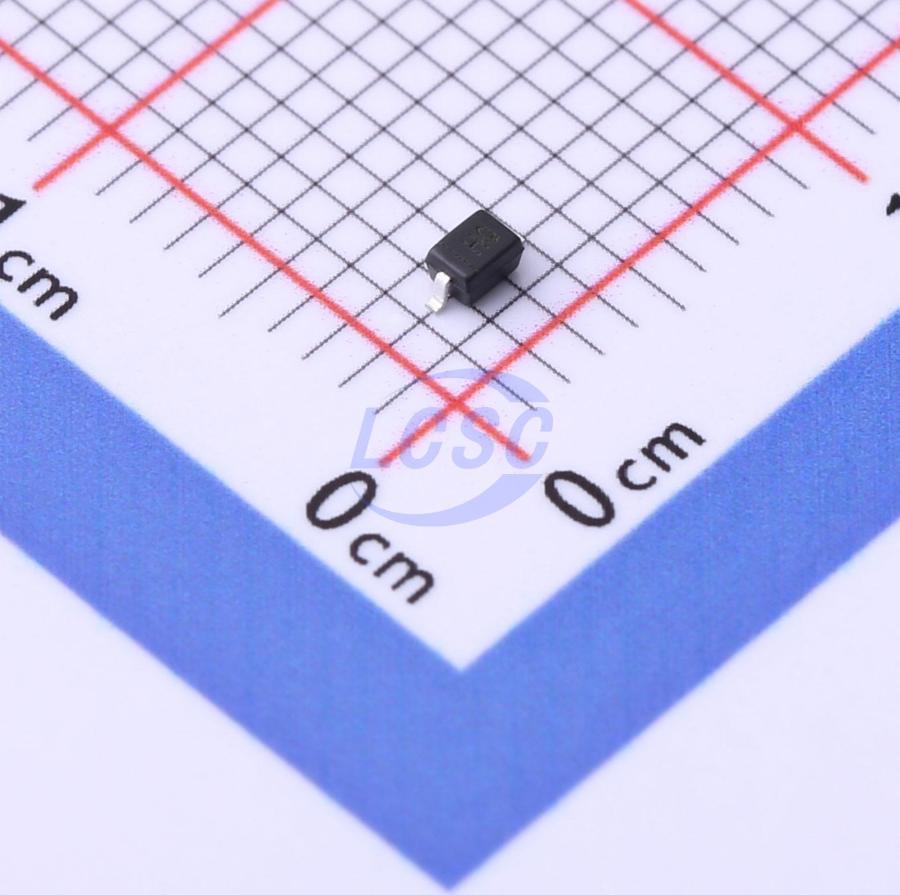

DDZ9697S-7
Zener Diode Independent 10V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 10V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ9697S-7
- Store part #
- C2999381
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C2999381
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.57 | ₹105.70 |
| 100+ | ₹8.94 | ₹894.00 |
| 300+ | ₹8.11 | ₹2,433.00 |
| 3,000+ | ₹7.50 | ₹22,500.00 |
| 6,000+ | ₹7.01 | ₹42,060.00 |
| 9,000+ | ₹6.76 | ₹60,840.00 |
10 × ₹10.57
₹105.70
excl. GST
₹124.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ9697S-7
₹105.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA
- Zener Voltage(Range)
- 9.5V~10.5V
- Zener Voltage(Nom)
- 10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- Very Tight Tolerance on VZ
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Lead Free By Design/RuHS Compliant
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52_C10S_R1_00001#C313463PANJIT · SOD-323 | PANJIT | SOD-323 | 3,140 | ₹3.27 · 3,140 in stock | View |
 | LM3Z10VT1G#C131828LRC · SOD-323 | LRC | SOD-323 | 7,350 | ₹3.06 · 7,350 in stock | View |
 | MM3Z10#C216753Shikues · SOD-323 | Shikues | SOD-323 | 1,550 | ₹2.50 · 1,550 in stock | View |
 | BZT52C10S-7-F#C260895DIODES · SOD-323 | DIODES | SOD-323 | 8,570 | ₹10.72 · 8,570 in stock | View |
 | S-LM3Z10VT1G#C2986743LRC · SOD-323 | LRC | SOD-323 | 3,000 | ₹4.90 · 3,000 in stock | View |
