DIODESDatasheet (PDF)

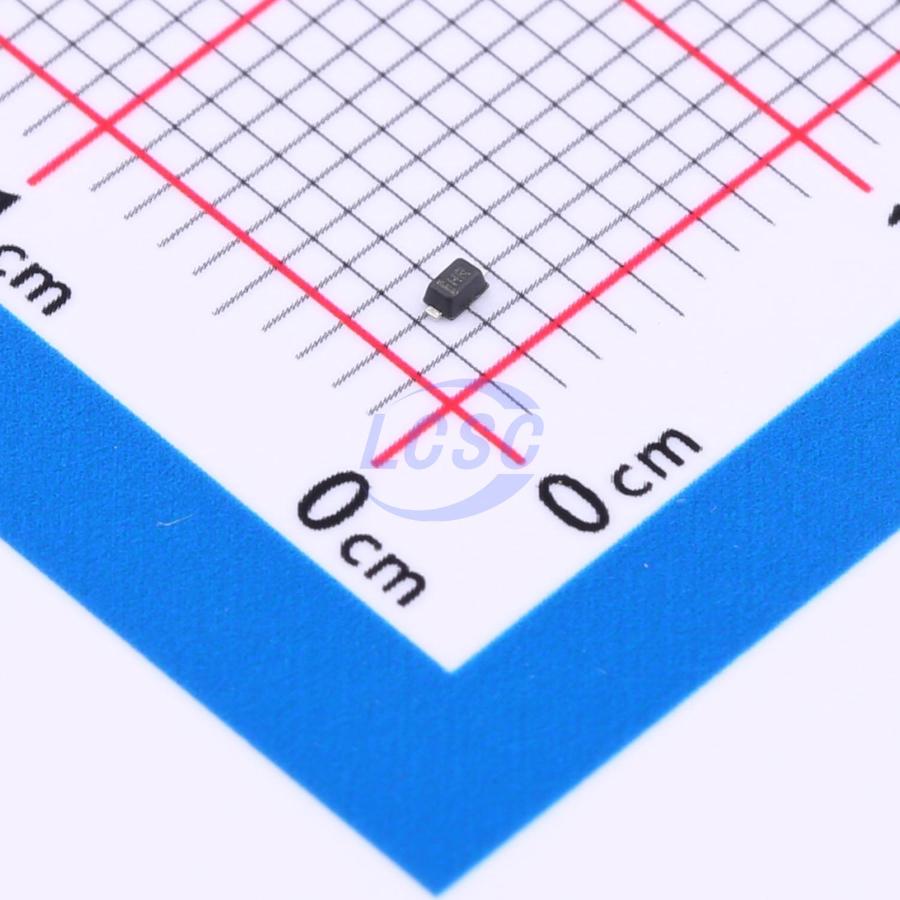

DDZ9698T-7
Zener Diode 11V 150mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 11V 150mW SOD-523
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ9698T-7
- Store part #
- C5157723
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C5157723
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.09 | ₹101.80 |
| 200+ | ₹4.01 | ₹802.00 |
| 600+ | ₹3.41 | ₹2,046.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 9,000+ | ₹2.74 | ₹24,660.00 |
| 21,000+ | ₹2.58 | ₹54,180.00 |
20 × ₹5.09
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ9698T-7
₹101.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 150mW
- Reverse Leakage Current (Ir)
- 50nA@8.4V
- Zener Voltage(Range)
- 10.45V~11.55V
- Zener Voltage(Nom)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.024 g
Overview
Key features
- Small, Low Profile Surface Mount Package
- Very Sharp Breakdown Characteristics
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPZ11VC-523#C46641680TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,500 | ₹2.37 · 2,500 in stock | View |
 | BZX584C11#C51315212CBI · SOD-523 | CBI | SOD-523 | 1,050 | ₹2.09 · 1,050 in stock | View |
 | BZX584C11#C22395578R+O · SOD-523 | R+O | SOD-523 | 13,300 | ₹2.78 · 13,300 in stock | View |
 | BZX584C11#C46641707TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 1,250 | ₹2.26 · 1,250 in stock | View |
 | MM5Z11VT1G-TP#C46641735TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,450 | ₹2.29 · 2,450 in stock | View |
