DIODESDatasheet (PDF)

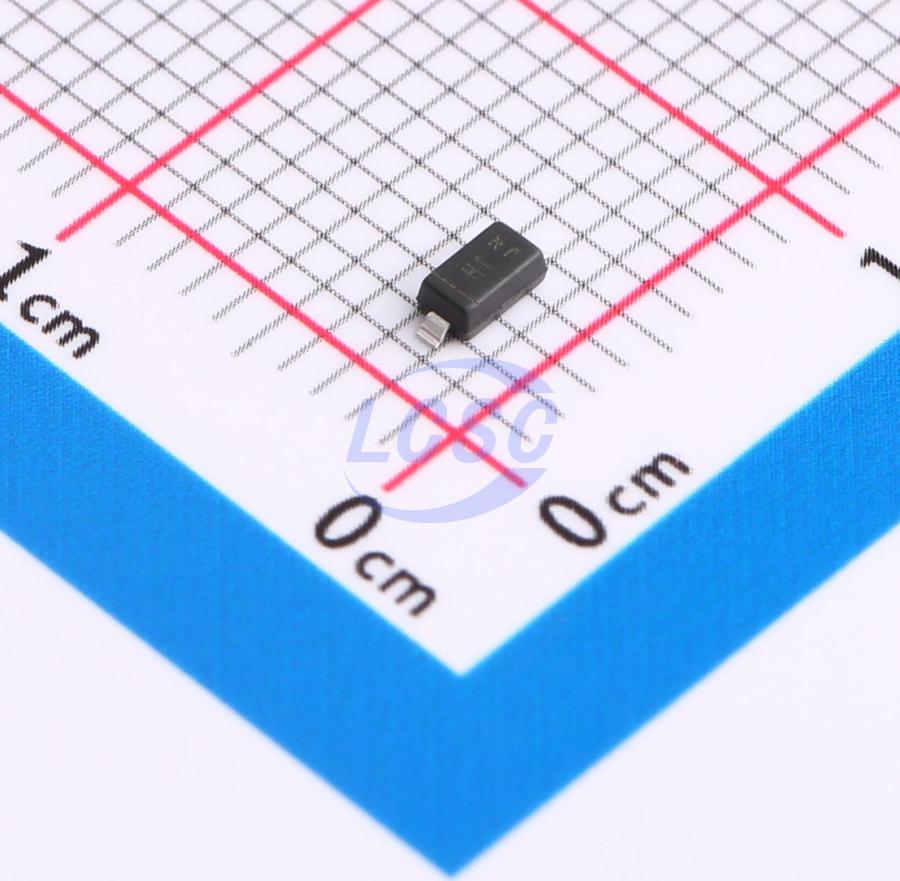

DDZ9700Q-7
Zener Diode Independent 13V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 13V 500mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ9700Q-7
- Store part #
- C5244847
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,550 in stock
#C5244847
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.68 | ₹53.40 |
| 50+ | ₹8.55 | ₹427.50 |
| 150+ | ₹7.49 | ₹1,123.50 |
| 500+ | ₹6.68 | ₹3,340.00 |
| 2,500+ | ₹6.05 | ₹15,125.00 |
| 5,000+ | ₹5.73 | ₹28,650.00 |
| 10,000+ | ₹5.66 | ₹56,600.00 |
| 20,000+ | ₹5.61 | ₹1,12,200.00 |
5 × ₹10.68
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ9700Q-7
₹53.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@9.8V
- Zener Voltage(Range)
- 12.35V~13.65V
- Zener Voltage(Nom)
- 13V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ4700T1G-TP#C46472976TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,900 | ₹2.29 · 1,900 in stock | View |
 | MMSZ4700-G3-08#C5674264VISHAY · SOD-123 | VISHAY | SOD-123 | 2,980 | ₹34.16 · 2,980 in stock | View |
 | MMSZ5243B#C51883341Huixin · SOD-123 | Huixin | SOD-123 | 2,740 | ₹5.45 · 2,740 in stock | View |
 | MMSZ13VCW#C5342868XCH · SOD-123FL | XCH | SOD-123FL | 1,150 | ₹2.55 · 1,150 in stock | View |
 | LMSZ5243BT1G#C131744LRC · SOD-123 | LRC | SOD-123 | 2,620 | ₹3.45 · 2,620 in stock | View |
