DIODESDatasheet (PDF)

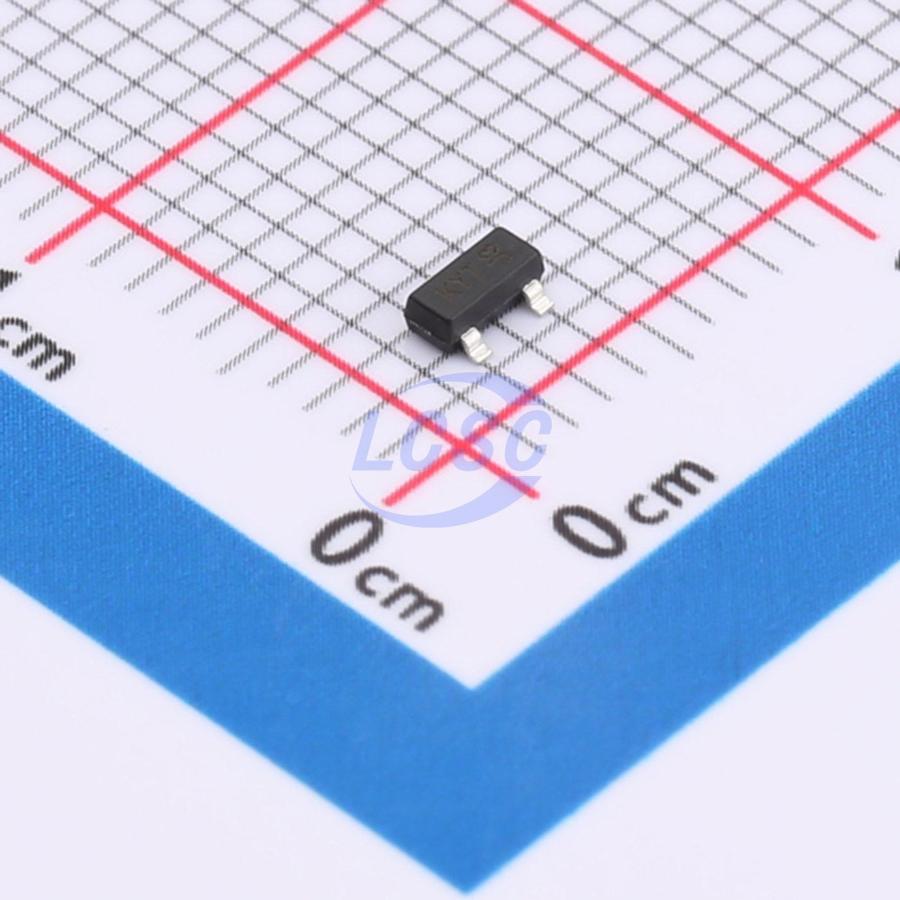

DDZX10C-13
Zener Diode 10V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 10V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX10C-13
- Store part #
- C5668005
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C5668005
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.16 | ₹71.60 |
| 100+ | ₹7.05 | ₹705.00 |
| 300+ | ₹7.00 | ₹2,100.00 |
| 1,000+ | ₹6.93 | ₹6,930.00 |
10 × ₹7.16
₹71.60
excl. GST
₹84.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX10C-13
₹71.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 8Ω
- Zener Voltage(Range)
- 9.7V~10.2V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 120Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84B10#C5293203JSCJ · SOT-23 | JSCJ | SOT-23 | 280 | ₹3.03 · 280 in stock | View |
 | BZX84B10-E3-08#C3000823VISHAY · SOT-23 | VISHAY | SOT-23 | 1,740 | ₹8.16 · 1,740 in stock | View |
 | BZX84C10#C48580944GOODWORK · SOT-23 | GOODWORK | SOT-23 | 1,500 | ₹1.23 · 1,500 in stock | View |
 | BZX84C10#C19077470R+O · SOT-23 | R+O | SOT-23 | 4,550 | ₹2.41 · 4,550 in stock | View |
 | BZX84C10LT1G-TP#C46472857TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,700 | ₹2.29 · 1,700 in stock | View |
