DIODESDatasheet (PDF)

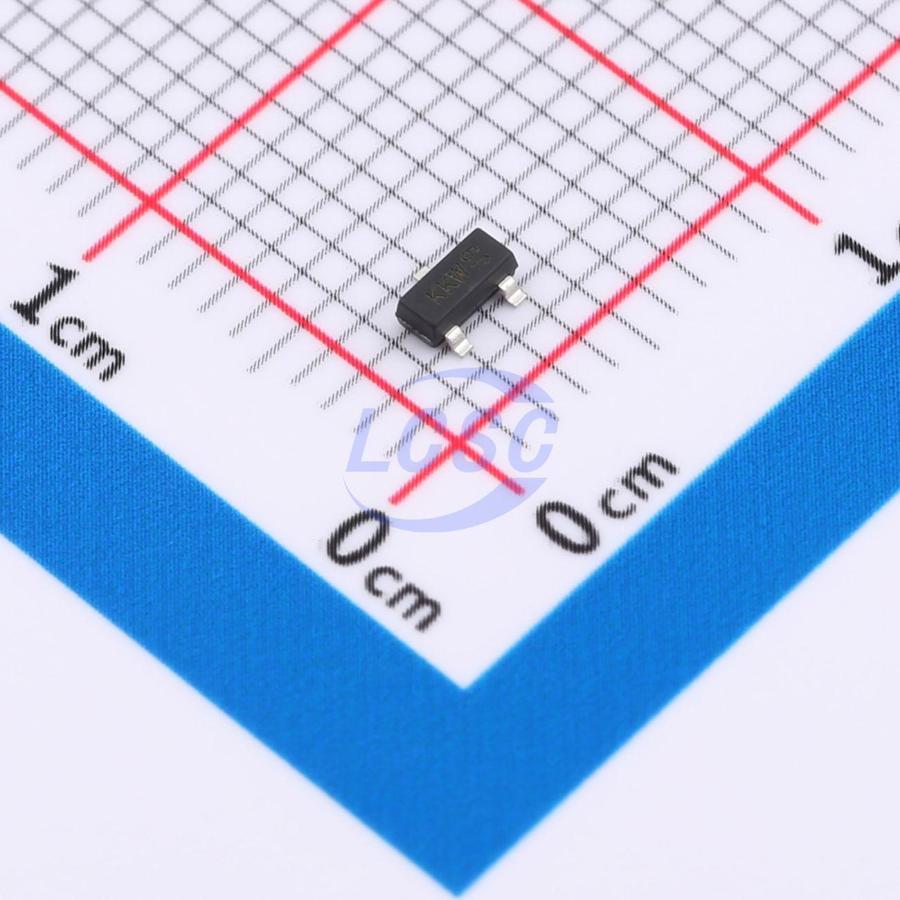

DDZX13B-13
Zener Diode Independent 12.88V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 12.88V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX13B-13
- Store part #
- C5244858
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C5244858
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.77 | ₹77.70 |
| 100+ | ₹7.66 | ₹766.00 |
| 300+ | ₹7.59 | ₹2,277.00 |
| 1,000+ | ₹7.51 | ₹7,510.00 |
10 × ₹7.77
₹77.70
excl. GST
₹91.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX13B-13
₹77.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 10uA@0.1V
- Impedance(Zzt)
- 14Ω
- Zener Voltage(Range)
- 12.55V~13.21V
- Zener Voltage(Nom)
- 12.88V
- Impedance(Zzk)
- 110Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX13B-7#C5244859DIODES · SOT-23 | DIODES | SOT-23 | 150 | ₹8.23 · 150 in stock | View |
 | MMBZ5243B#C2910156JSCJ · SOT-23 | JSCJ | SOT-23 | 3,000 | ₹3.60 · 3,000 in stock | View |
 | LBZX84C13LT1G#C12763LRC · SOT-23 | LRC | SOT-23 | 800 | ₹2.55 · 800 in stock | View |
 | BZX84C13LT1G-TP#C46472876TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,300 | ₹2.33 · 2,300 in stock | View |
 | BZX84C13#C53086355GOODWORK · SOT-23 | GOODWORK | SOT-23 | 5,200 | ₹2.24 · 5,200 in stock | View |
