DIODESDatasheet (PDF)

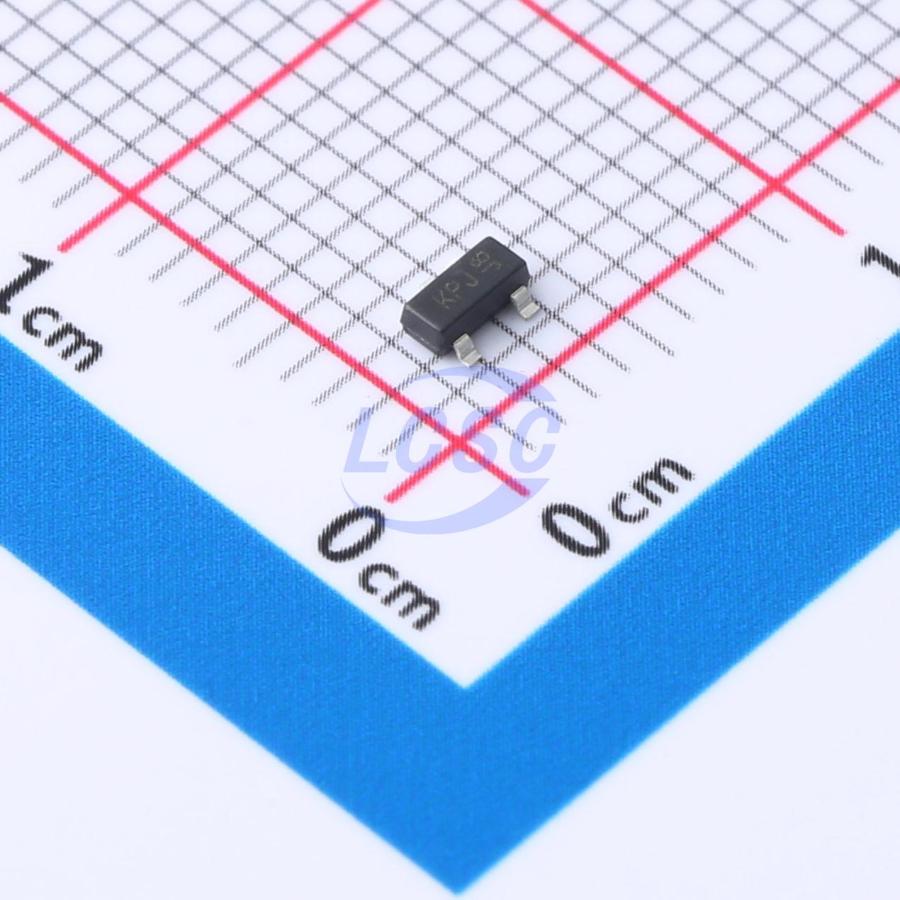

DDZX20C-7
Zener Diode Independent 19.7V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 19.7V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX20C-7
- Store part #
- C5244861
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
920 in stock
#C5244861
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.51 | ₹37.55 |
| 50+ | ₹7.36 | ₹368.00 |
| 150+ | ₹7.25 | ₹1,087.50 |
| 500+ | ₹7.14 | ₹3,570.00 |
5 × ₹7.51
₹37.55
excl. GST
₹44.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZX20C-7
₹37.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@15V
- Impedance(Zzt)
- 28Ω
- Zener Voltage(Range)
- 19.23V~20.22V
- Zener Voltage(Nom)
- 19.7V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX20C-13#C5668008DIODES · SOT-23 | DIODES | SOT-23 | 70 | ₹8.18 · 70 in stock | View |
 | TPZ20VCS3#C46472809TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,500 | ₹2.37 · 1,500 in stock | View |
 | BZX84B20#C5293189JSCJ · SOT-23 | JSCJ | SOT-23 | 1,740 | ₹4.42 · 1,740 in stock | View |
 | LBZX84C20LT1G#C49504LRC · SOT-23 | LRC | SOT-23 | 1,620 | ₹3.56 · 1,620 in stock | View |
 | BZX84C20LT1G-TP#C46472871TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,650 | ₹2.33 · 2,650 in stock | View |
