DDZX22D-13

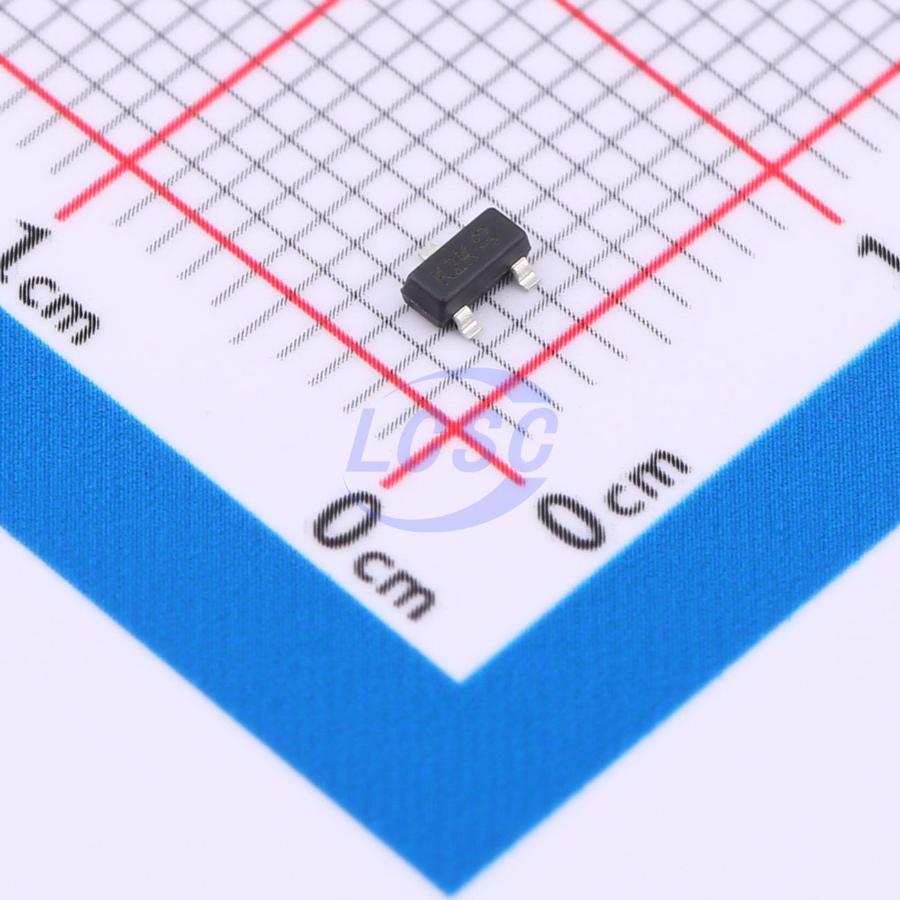

Zener Diode 22V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 22V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX22D-13
- Store part #
- C6224740
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C6224740
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.00 | ₹70.00 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹6.83 | ₹2,049.00 |
| 1,000+ | ₹6.76 | ₹6,760.00 |
10 × ₹7.00
₹70.00
excl. GST
₹82.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX22D-13
₹70.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@17V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 21.52V~22.63V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
