DIODESDatasheet (PDF)

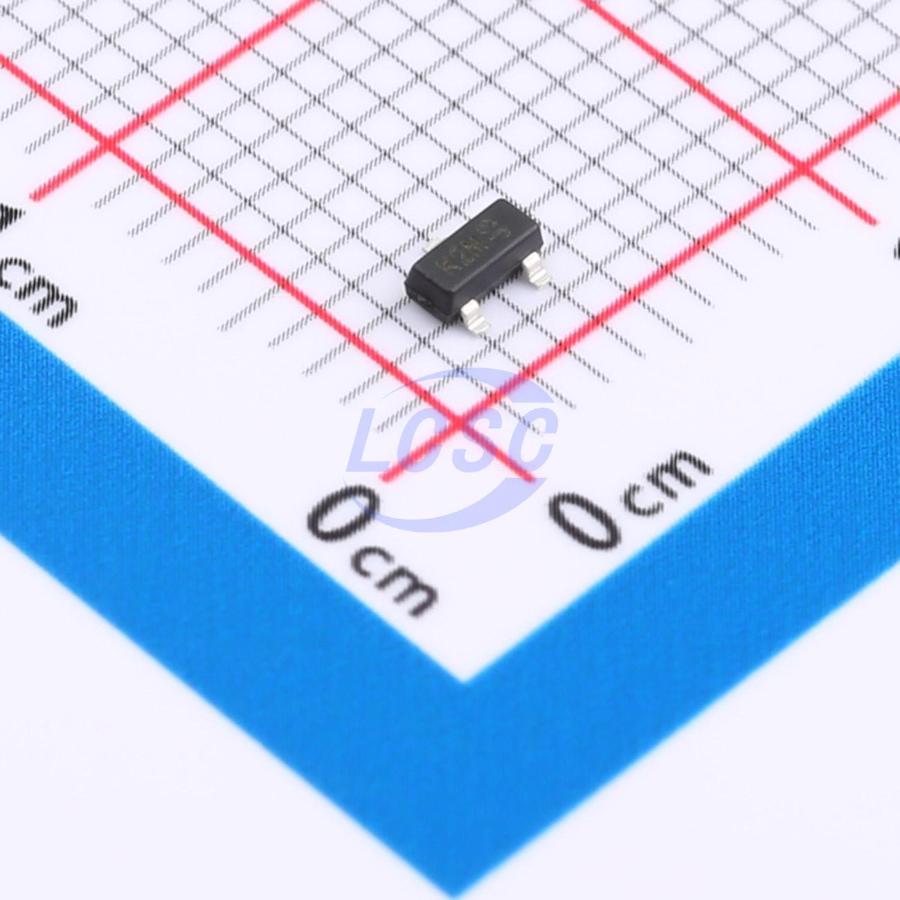

DDZX27D-13
Zener Diode 27V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 27V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX27D-13
- Store part #
- C6022248
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C6022248
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.10 | ₹71.00 |
| 100+ | ₹7.01 | ₹701.00 |
| 300+ | ₹6.95 | ₹2,085.00 |
| 1,000+ | ₹6.88 | ₹6,880.00 |
10 × ₹7.10
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX27D-13
₹71.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@21V
- Impedance(Zzt)
- 45Ω
- Zener Voltage(Range)
- 26.29V~27.64V
- Zener Voltage(Nom)
- 27V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX27D-7#C5244863DIODES · SOT-23 | DIODES | SOT-23 | 130 | ₹6.77 · 130 in stock | View |
 | BZX84C27#C2926247FOSAN · SOT-23 | FOSAN | SOT-23 | 13,500 | ₹1.57 · 13,500 in stock | View |
 | BZX84B27#C5359922MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,600 | ₹4.35 · 1,600 in stock | View |
 | BZX84B27#C55259761luJing · SOT-23 | luJing | SOT-23 | 2,950 | ₹1.40 · 2,950 in stock | View |
 | BZX84B27#C51315239CBI · SOT-23 | CBI | SOT-23 | 2,850 | ₹2.12 · 2,850 in stock | View |
