DIODESDatasheet (PDF)

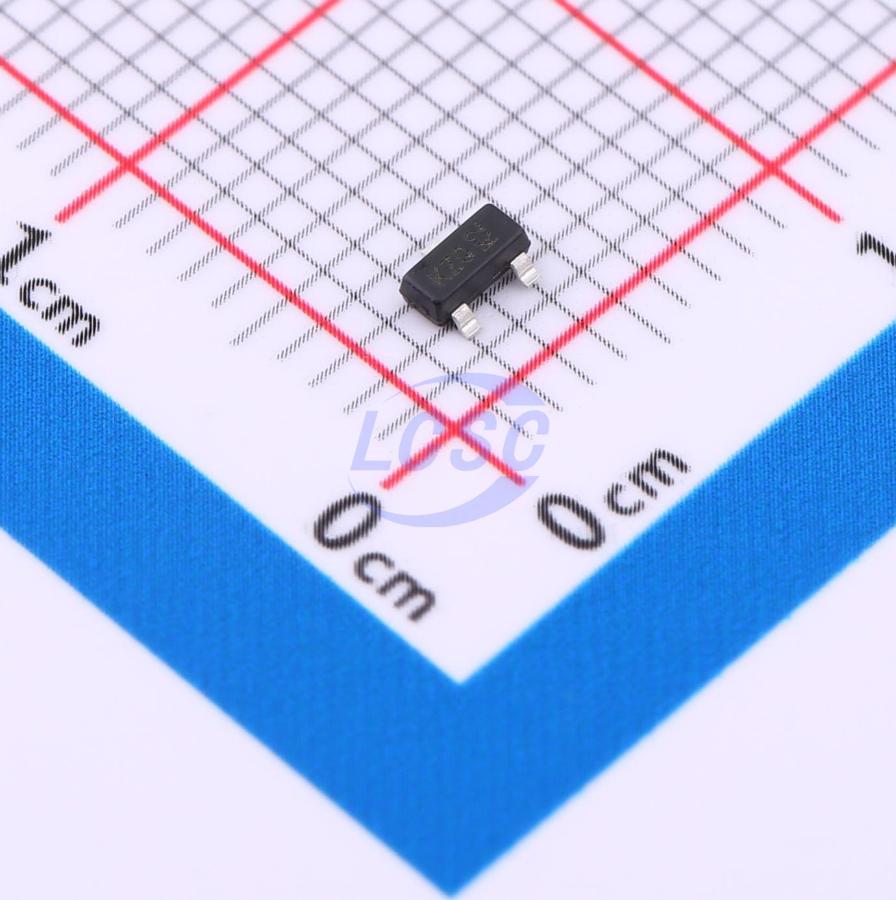

DDZX36-7
Zener Diode 36.9V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 36.9V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX36-7
- Store part #
- C7171772
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C7171772
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹7.28 | ₹728.00 |
| 300+ | ₹7.21 | ₹2,163.00 |
| 1,000+ | ₹7.14 | ₹7,140.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZX36-7
₹73.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@30V
- Impedance(Zzt)
- 85Ω
- Zener Voltage(Range)
- 35.36V~37.19V
- Zener Voltage(Nom)
- 36.9V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX36-13#C5712061DIODES · SOT-23 | DIODES | SOT-23 | 150 | ₹8.45 · 150 in stock | View |
 | BZX84C36-E3-08#C3741646VISHAY · SOT-23 | VISHAY | SOT-23 | 2,380 | ₹18.46 · 2,380 in stock | View |
 | LBZX84C36LT1G#C14279LRC · SOT-23 | LRC | SOT-23 | 2,100 | ₹2.57 · 2,100 in stock | View |
 | BZX84C36#C2926250FOSAN · SOT-23 | FOSAN | SOT-23 | 2,950 | ₹2.12 · 2,950 in stock | View |
 | BZX84C36#C2993106MDD(Microdiode Semiconductor) · SOT-23 | MDD(Microdiode Semiconductor) | SOT-23 | 1,850 | ₹2.41 · 1,850 in stock | View |
