DIODESDatasheet (PDF)

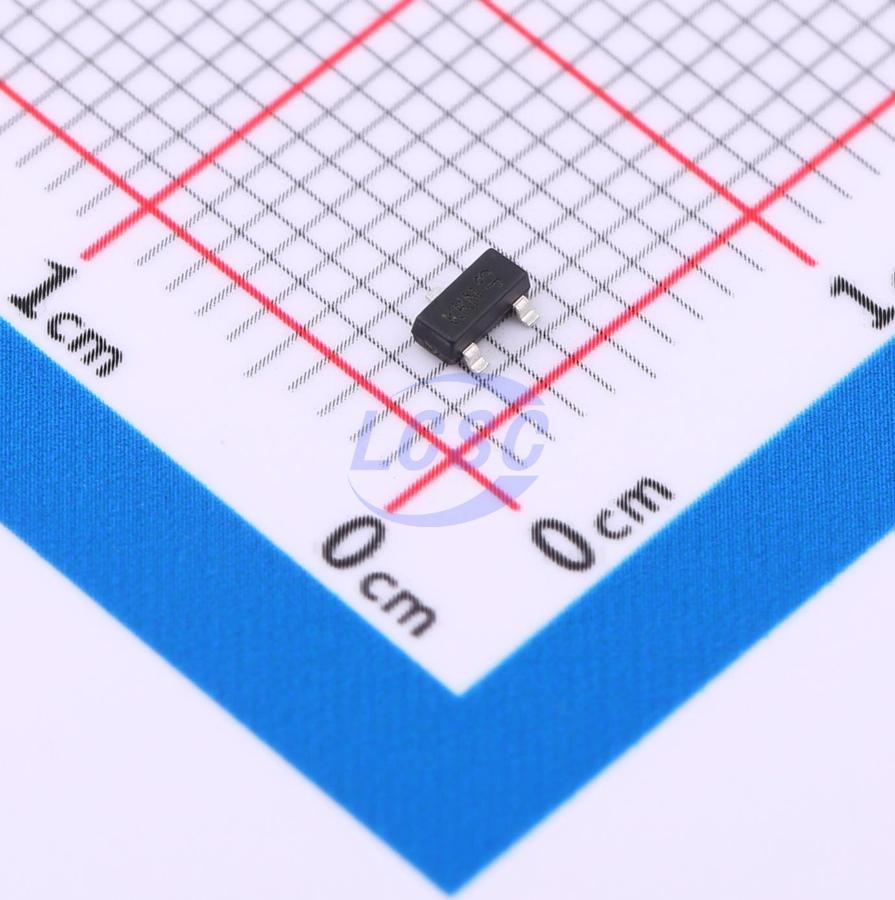

DDZX5V6B-13
Zener Diode 5.6V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 5.6V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX5V6B-13
- Store part #
- C7264871
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C7264871
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.07 | ₹101.40 |
| 200+ | ₹4.17 | ₹834.00 |
| 600+ | ₹3.68 | ₹2,208.00 |
| 2,000+ | ₹3.39 | ₹6,780.00 |
| 10,000+ | ₹3.12 | ₹31,200.00 |
| 20,000+ | ₹2.98 | ₹59,600.00 |
20 × ₹5.07
₹101.40
excl. GST
₹119.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX5V6B-13
₹101.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@2.5V
- Impedance(Zzt)
- 11Ω
- Zener Voltage(Range)
- 5.45V~5.73V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 400Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.017 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX5V6B-7#C5244867DIODES · SOT-23 | DIODES | SOT-23 | 62 | ₹117.56 · 62 in stock | View |
 | BZX84B5V6-E3-08#C3740140VISHAY · SOT-23 | VISHAY | SOT-23 | 5 | ₹9.14 · 5 in stock | View |
 | BZX84B5V6#C5293212JSCJ · SOT-23 | JSCJ | SOT-23 | 20 | ₹4.00 · 20 in stock | View |
| BZX84C5V6-HE3_A-08#C20569674VISHAY · SOT-23(TO-236) | VISHAY | SOT-23(TO-236) | 388 | ₹87.38 · 388 in stock | View | |
 | BZX84C5V6-E3-08#C3737658VISHAY · SOT-23 | VISHAY | SOT-23 | 445 | ₹46.74 · 445 in stock | View |
