DIODESDatasheet (PDF)

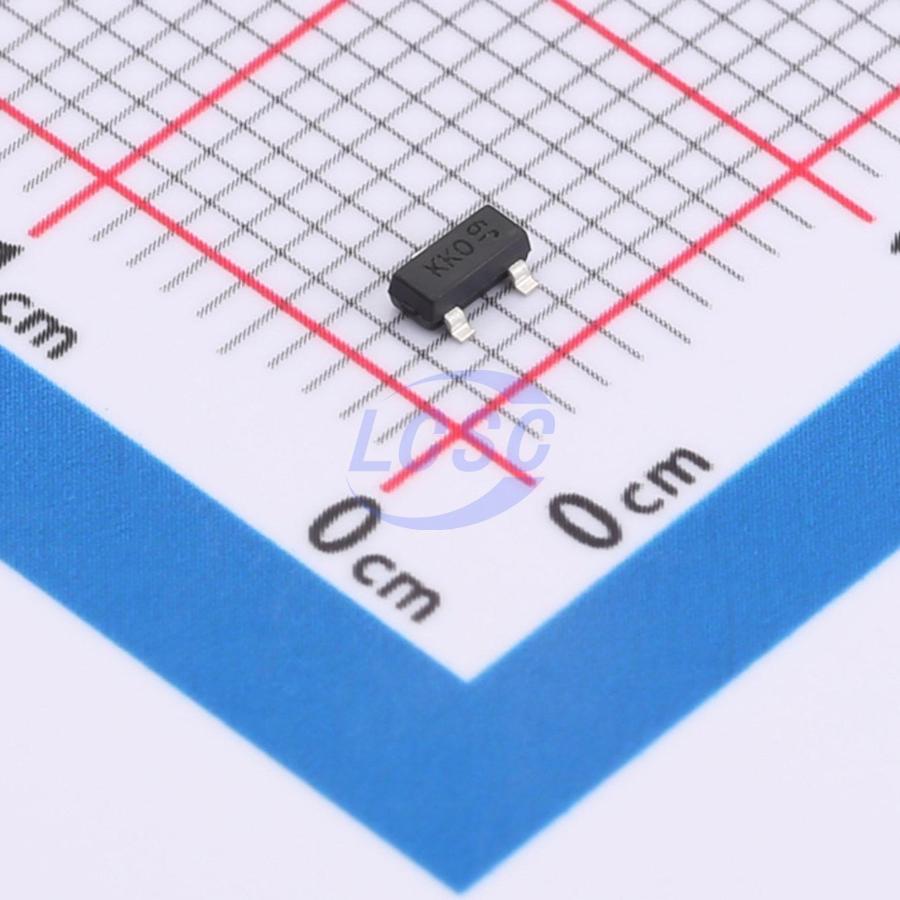

DDZX6V2B-13
Zener Diode 6.2V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 6.2V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX6V2B-13
- Store part #
- C6932155
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C6932155
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹7.85 | ₹785.00 |
| 300+ | ₹7.77 | ₹2,331.00 |
| 1,000+ | ₹7.70 | ₹7,700.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX6V2B-13
₹79.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@4V
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 5.96V~6.27V
- Zener Voltage(Nom)
- 6.2V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZX84B6V2-HE3_A-08#C20566675VISHAY · SOT-23(TO-236) | VISHAY | SOT-23(TO-236) | 374 | ₹91.06 · 374 in stock | View | |
 | BZX84C6V2#C2910188JSCJ · SOT-23 | JSCJ | SOT-23 | 480 | ₹3.19 · 480 in stock | View |
 | BZX84C6V2LT1G-TP#C46472861TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,400 | ₹2.17 · 1,400 in stock | View |
 | LBZX84C6V2LT1G#C12785LRC · SOT-23 | LRC | SOT-23 | 2,440 | ₹2.24 · 2,440 in stock | View |
 | BZX84C6V2#C22391929YFW · SOT-23 | YFW | SOT-23 | 2,950 | ₹2.62 · 2,950 in stock | View |
