DIODESDatasheet (PDF)

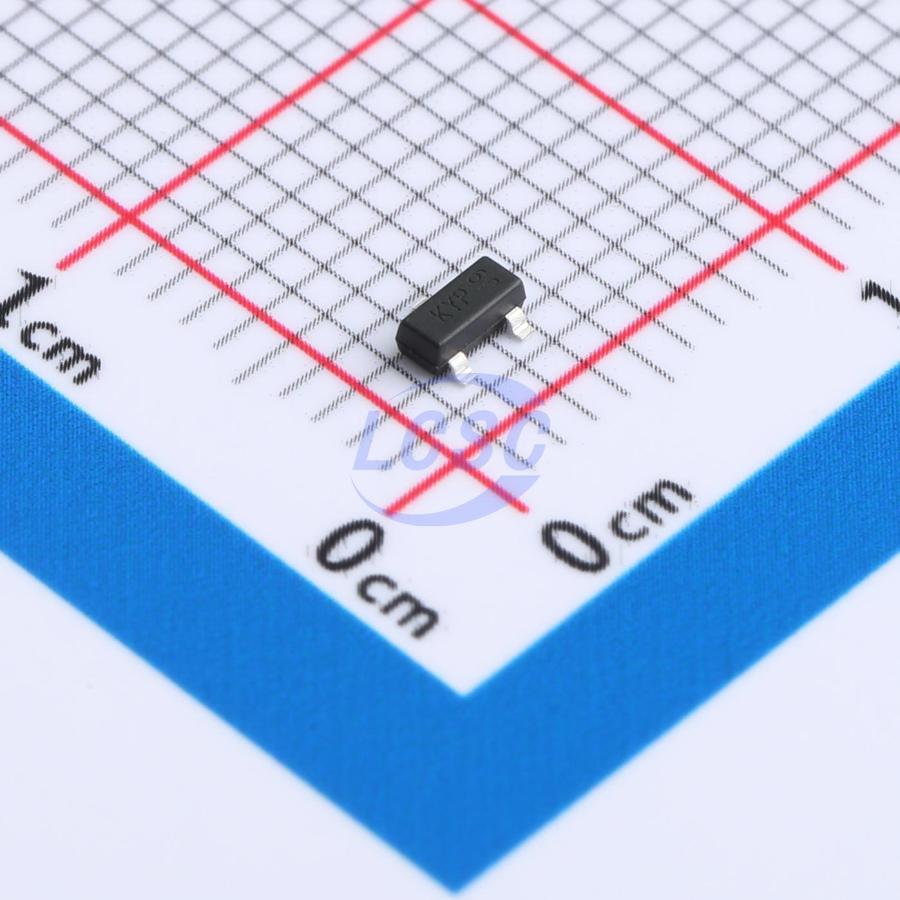

DDZX6V8C-13
Zener Diode 6.8V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 6.8V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX6V8C-13
- Store part #
- C6022250
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C6022250
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹7.85 | ₹785.00 |
| 300+ | ₹7.77 | ₹2,331.00 |
| 1,000+ | ₹7.70 | ₹7,700.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX6V8C-13
₹79.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@5V
- Impedance(Zzt)
- 5Ω
- Zener Voltage(Range)
- 6.66V~7.01V
- Zener Voltage(Nom)
- 6.8V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX6V8C-7#C3445957DIODES · SOT-23 | DIODES | SOT-23 | 1,000 | ₹23.50 · 1,000 in stock | View |
 | MMBZ5235B#C3031844JSCJ · SOT-23 | JSCJ | SOT-23 | 1,080 | ₹3.51 · 1,080 in stock | View |
 | BZX84C6V8#C213357FMS(Formosa Microsemi) · SOT-23 | FMS(Formosa Microsemi) | SOT-23 | 120 | ₹3.21 · 120 in stock | View |
 | BZX84C6V8#C2926233FOSAN · SOT-23 | FOSAN | SOT-23 | 2,350 | ₹1.49 · 2,350 in stock | View |
 | LBZX84C6V8LT1G#C12746LRC · SOT-23 | LRC | SOT-23 | 18,900 | ₹2.57 · 18,900 in stock | View |
