DIODESDatasheet (PDF)

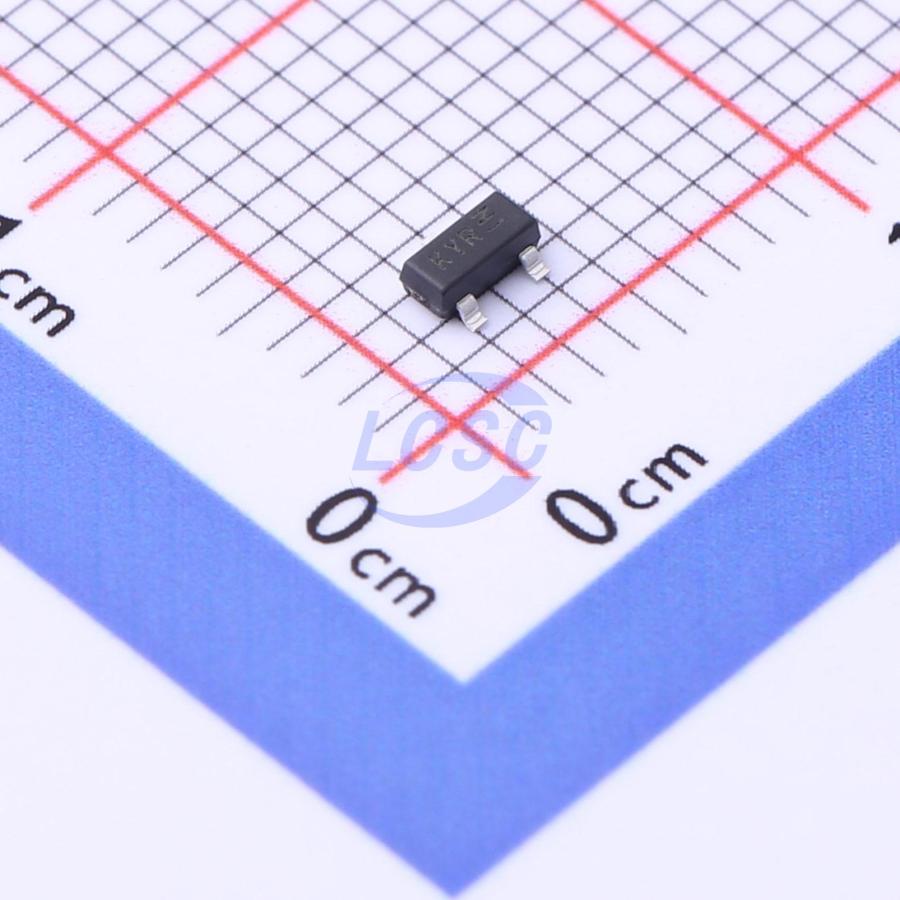

DDZX8V2C-7
Zener Diode Independent 8.2V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 8.2V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX8V2C-7
- Store part #
- C2978923
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C2978923
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹2.98 | ₹29.80 |
| 100+ | ₹2.91 | ₹291.00 |
| 300+ | ₹2.87 | ₹861.00 |
| 1,000+ | ₹2.83 | ₹2,830.00 |
10 × ₹2.98
₹29.80
excl. GST
₹35.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZX8V2C-7
₹29.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@6.5V
- Impedance(Zzt)
- 8Ω
- Zener Voltage(Range)
- 8.03V~8.45V
- Zener Voltage(Nom)
- 8.2V
- Impedance(Zzk)
- 120Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX8V2C-13#C6831592DIODES · SOT-23 | DIODES | SOT-23 | 130 | ₹5.21 · 130 in stock | View |
 | TPZ8V2CS3#C42436652TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,800 | ₹2.88 · 2,800 in stock | View |
 | BZX84B8V2Q-7-F#C6522918DIODES · SOT-23-3 | DIODES | SOT-23-3 | 100 | ₹32.33 · 100 in stock | View |
 | LBZX84C8V2LT1G#C12730LRC · SOT-23 | LRC | SOT-23 | 200 | ₹2.70 · 200 in stock | View |
 | BZX84C8V2#C22395522R+O · SOT-23 | R+O | SOT-23 | 31,350 | ₹2.45 · 31,350 in stock | View |
