DIODESDatasheet (PDF)

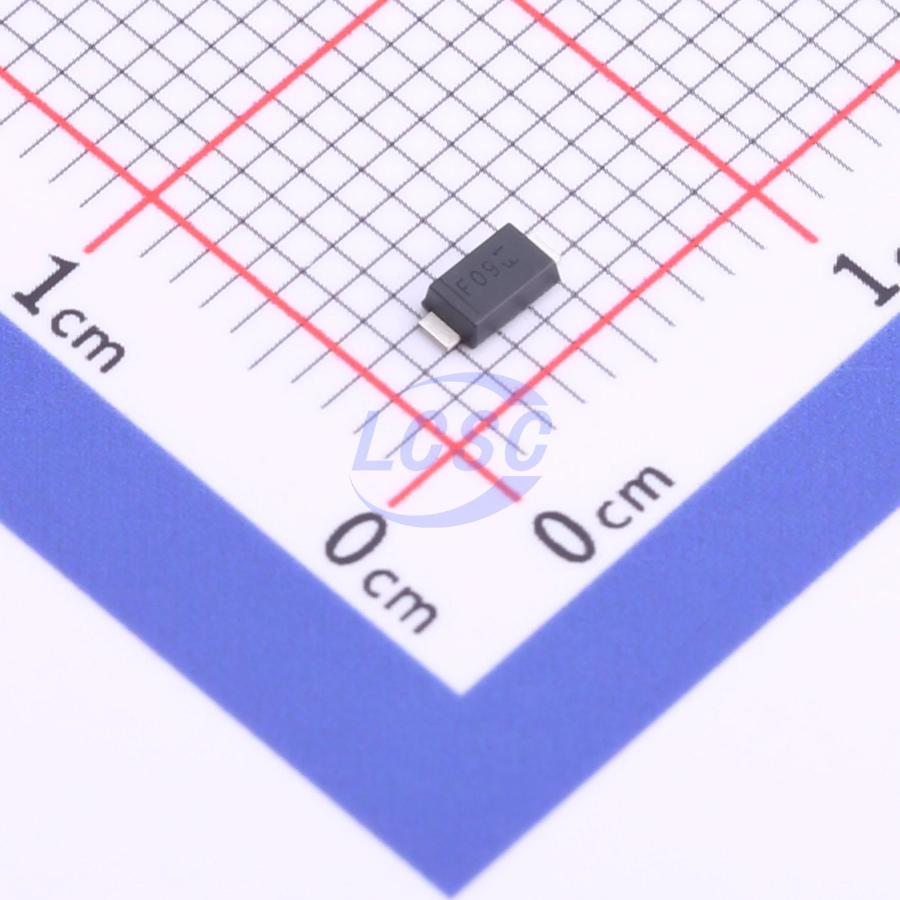

DFLS1100Q-7
1 Independent 100V 860mV@2A 1A PowerDI-123 Single Diodes RoHS
PowerDI-123ROHS3 CompliantActive
Voltage: 100V Current: 1A
- Manufacturer
- DIODES
- Manufacturer part #
- DFLS1100Q-7
- Store part #
- C460871
- Package / case
- PowerDI-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C460871
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.15 | ₹85.15 |
| 10+ | ₹69.07 | ₹690.70 |
| 30+ | ₹61.25 | ₹1,837.50 |
| 100+ | ₹53.44 | ₹5,344.00 |
| 500+ | ₹48.66 | ₹24,330.00 |
| 1,000+ | ₹46.27 | ₹46,270.00 |
1 × ₹85.15
₹85.15
excl. GST
₹100.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLS1100Q-7
₹85.15 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 860mV@2A
- Reverse Leakage Current (Ir)
- 350nA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
This Schottky Barrier Rectifier is designed to meet the stringent requirements of automotive applications. It is ideally suited for use as: Polarity Protection Diode, Re - circulating Diode, Switching Diode
Applications
- Polarity Protection Diode
- Re - circulating Diode
- Switching Diode
Key features
- Guard Ring Die Construction for Transient Protection
- Low Power Loss, High Efficiency
- Patented Interlocking Clip Design for High Surge Current Capacity
- Lead Free Finish, RoHS Compliant
- Halogen - and Antimony - Free. "Green" Device
- The DFLS1100Q - 7 is suitable for automotive applications requiring specific change control; this part is AEC - Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DFLS1100-7#C107674DIODES · PowerDI-123 | DIODES | PowerDI-123 | 9,450 | ₹37.63 · 9,450 in stock | View |
 | DFLS2100-7#C154727DIODES · PowerDI-123 | DIODES | PowerDI-123 | 6,490 | ₹40.42 · 6,490 in stock | View |
 | DFLS2100#C3018522FUXINSEMI · PowerDI-123 | FUXINSEMI | PowerDI-123 | 38,580 | ₹6.03 · 38,580 in stock | View |
 | DFLS1150-7#C156325DIODES · PowerDI-123 | DIODES | PowerDI-123 | 35,705 | ₹29.49 · 35,705 in stock | View |
 | DFLS1150-7-FS#C22449592FUXINSEMI · PowerDI-123 | FUXINSEMI | PowerDI-123 | 14,460 | ₹9.87 · 14,460 in stock | View |
