DIODESDatasheet (PDF)

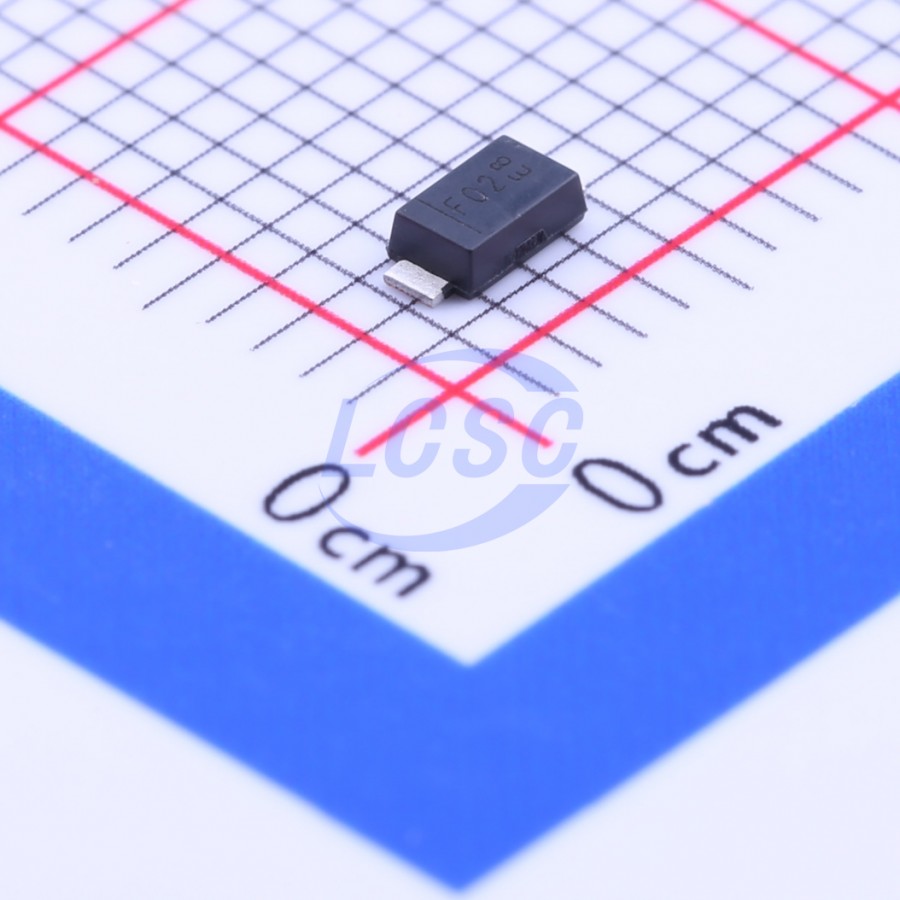

DFLS120L-7
1 Independent 20V 360mV@1A 1A PowerDI-123 Single Diodes RoHS
PowerDI-123ROHS CompliantActive
Voltage： 20V Current： 1A
- Manufacturer
- DIODES
- Manufacturer part #
- DFLS120L-7
- Store part #
- C155287
- Package / case
- PowerDI-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C155287
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.35 | ₹55.35 |
| 10+ | ₹43.63 | ₹436.30 |
| 30+ | ₹38.63 | ₹1,158.90 |
| 100+ | ₹32.35 | ₹3,235.00 |
| 500+ | ₹29.52 | ₹14,760.00 |
| 1,000+ | ₹27.78 | ₹27,780.00 |
1 × ₹55.35
₹55.35
excl. GST
₹65.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLS120L-7
₹55.35 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 360mV@1A
- Reverse Leakage Current (Ir)
- 1mA@20V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
Key features
- Guard Ring Die Construction for Transient Protection
- Low Power Loss, High Efficiency
- Patented Interlocking Clip Design for High Surge Current Capacity
- High Current Capability and Low Forward Voltage Drop
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An Automotive-Compliant Part is Available Under Separate Datasheet (DFLS120L-Q)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DFLS130L-7#C110493DIODES · PowerDI-123 | DIODES | PowerDI-123 | 2,906 | ₹66.71 · 2,906 in stock | View |
 | DFLS220L-7#C211432DIODES · PowerDI-123 | DIODES | PowerDI-123 | 45 | ₹37.65 · 45 in stock | View |
 | DFLS130-7#C150474DIODES · PowerDI-123 | DIODES | PowerDI-123 | 4,229 | ₹78.40 · 4,229 in stock | View |
 | DFLS230L-7#C124194DIODES · PowerDI-123 | DIODES | PowerDI-123 | 2,995 | ₹53.74 · 2,995 in stock | View |
 | DFLS230LQ-7#C5244352DIODES · PowerDI-123 | DIODES | PowerDI-123 | 11 | ₹72.95 · 11 in stock | View |
