DIODESDatasheet (PDF)

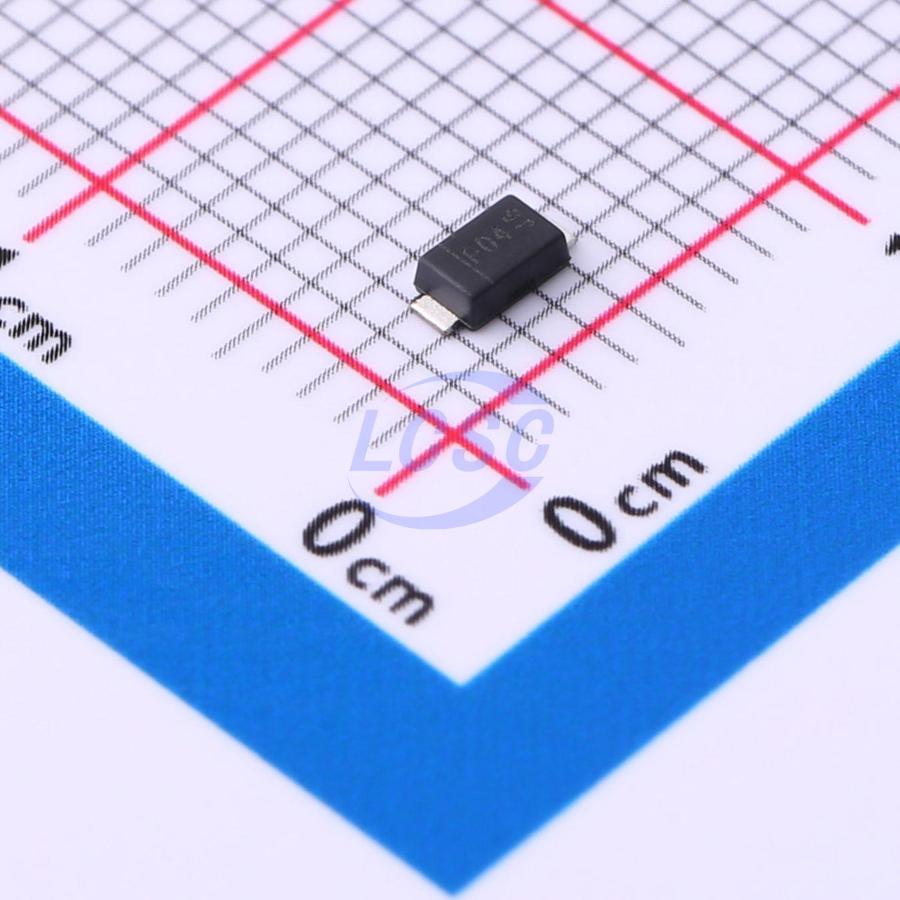

DFLS140Q-7
Diode 40V 0.5A Surface Mount Power-DI-123
PowerDI-123ROHS3 CompliantActive
DIODE SCHOTTKY 40V Power-DI-123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLS140Q-7
- Store part #
- C5157768
- Package / case
- PowerDI-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C5157768
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.37 | ₹156.85 |
| 50+ | ₹27.66 | ₹1,383.00 |
| 150+ | ₹26.08 | ₹3,912.00 |
| 500+ | ₹24.09 | ₹12,045.00 |
| 3,000+ | ₹23.22 | ₹69,660.00 |
| 6,000+ | ₹22.69 | ₹1,36,140.00 |
5 × ₹31.37
₹156.85
excl. GST
₹185.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLS140Q-7
₹156.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - Forward(Vf@If)
- 510mV@0.5A
- Reverse Leakage Current (Ir)
- 20uA@40V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
This Schottky Barrier Rectifier is designed to meet the stringent requirements of automotive applications. It is ideally suited to use as: Polarity Protection Diode Re- Circulating Diode Switching Diode
Applications
- Polarity Protection Diode
- Re- Circulating Diode
- Switching Diode
Key features
- Guard Ring Die Construction for Transient Protection
- Low Power Loss, High Efficiency
- Patented Interlocking Clip Design for High Surge Current Capacity
- Low Forward Voltage Drop
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DFLS140Q-7#C3757131DIODES · PowerDI-123 | DIODES | PowerDI-123 | 45 | ₹127.47 · 45 in stock | View |
 | DFLS140-7#C110494DIODES · PowerDI-123 | DIODES | PowerDI-123 | 550 | ₹35.95 · 550 in stock | View |
 | DFLS240-7#C124195DIODES · PowerDI-123 | DIODES | PowerDI-123 | 263 | ₹80.70 · 263 in stock | View |
 | DFLS240Q-7#C5381663DIODES · PowerDI123 | DIODES | PowerDI123 | 2,175 | ₹44.20 · 2,175 in stock | View |
 | DFLS240L-7#C74179DIODES · PowerDI-123 | DIODES | PowerDI-123 | 12,890 | ₹48.79 · 12,890 in stock | View |
