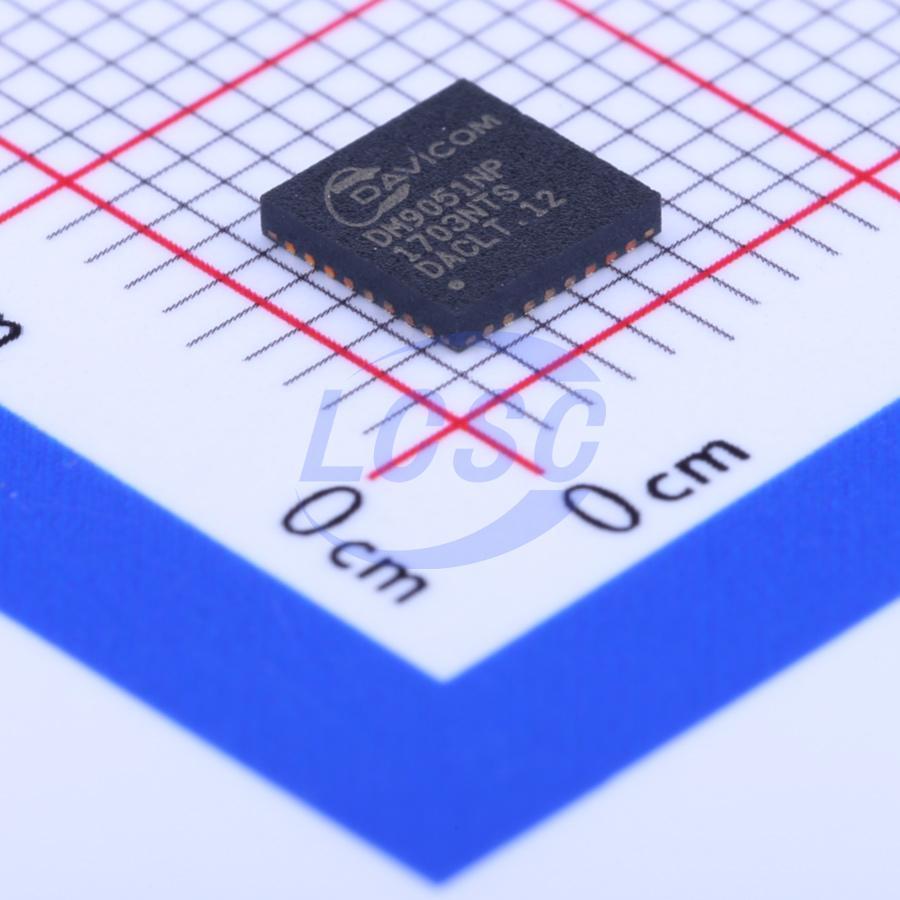

DM9051NP

The DM9051 is a fully integrated and cost- effective low pin count single chip Fast Ethernet controller with SPI interface, a 10/100M PHY and 4K Dword SRAM. It is designed with low power and high performance SPI interface that support 5V/3.3V IO tolerance. The DM9051 supports SPI interfaces to internal memory accesses for various processors.The PHY of the DM9051 can interface to the UTP3,4,5 in 10Base- T and UTP5 in 100Base- TX with HP Auto- MDIX. It is fully compliant with the IEEE 802.3u Spec. Its auto- negotiation function will automatically configure the DM9051 to take the maximum advantage of its abilities. The DM9051 also supports IEEE 802.3x full- duplex flow control.

Applications

• Smart meter
• Industrial Control
• Sensor Devices
• Security, Motion Control
• Building Automation
• Voice over IP (VoIP)
• Internet Radio

Key features

• SPI Interface with clock speeds up to 50MHz/160MHz for high throughput applications
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Support interface for EEPROM
• Built- in integrated 3.3V to 1.8V low noise regulator for core and analog blocks
• Supports wake- up on LAN (WOL)
• Integrated 10/100M transceiver
• With HP Auto- MDIX
• Supports back pressure mode for half- duplex
• IEEE802.3x flow control for full- duplex mode
• Supports wakeup frame, link status change and magic packet events for remote wake up
• Support 100M Fiber interface
• Integrated 16K Byte SRAM
• Supports IP/TCP/UDP checksum generation and checking
• Supports automatically load vendor ID and product ID from EEPROM
• Optional EEPROM configuration
• Very low power consumption mode
• EMI (Class B) and HBM ESD Rating 8KV
• Support Industrial Temperature Range: - 40°C to +85°C (DM9051INP)
• Compatible with 5V/3.3V tolerant I/O
• DSP architecture PHY Transceiver
• 0.18um process
