VBsemi ElecDatasheet (PDF)

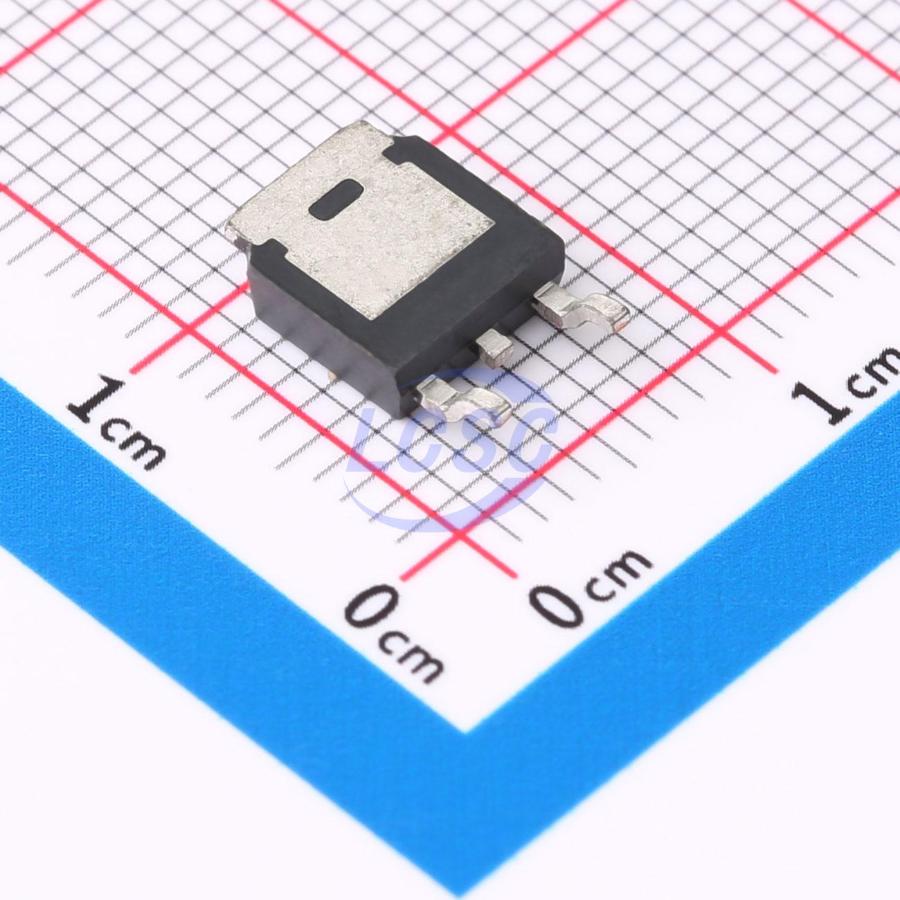

DMP6185SK3-13-VB
P-Channel 60V 30A Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET P-CH 60V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- DMP6185SK3-13-VB
- Store part #
- C7568777
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568777
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.49 | ₹79.49 |
| 10+ | ₹64.62 | ₹646.20 |
| 30+ | ₹57.17 | ₹1,715.10 |
| 100+ | ₹49.94 | ₹4,994.00 |
| 500+ | ₹45.48 | ₹22,740.00 |
| 1,000+ | ₹43.14 | ₹43,140.00 |
1 × ₹79.49
₹79.49
excl. GST
₹93.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP6185SK3-13-VB
₹79.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1nF
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 61mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.505 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% single-pulse avalanche energy tested
