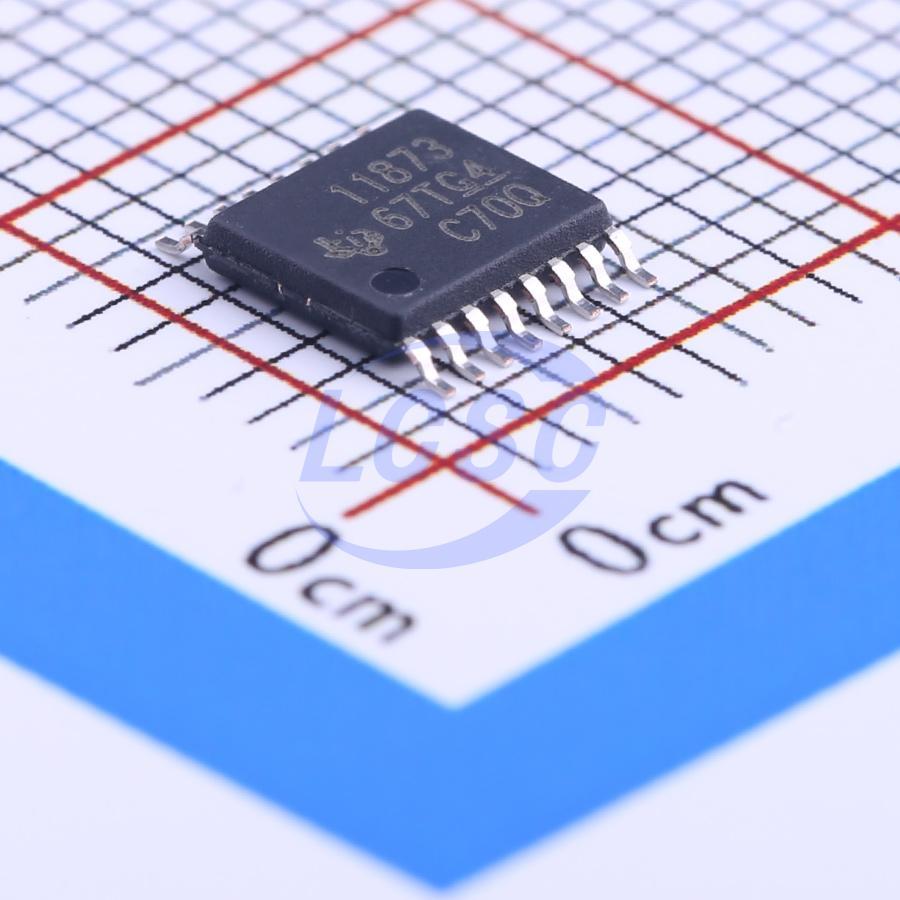

DRV11873PWPR

The DRV11873 is a three-phase sensorless motor driver with integrated power MOSFETs, capable of delivering a continuous drive current of up to 1.5A and a peak drive current of up to 2A. It is specifically designed for fan motor drive applications, featuring low noise and requiring a small number of external components. It has built-in overcurrent protection, eliminating the need for an external current-sensing resistor. The synchronous rectification operation mode can improve the efficiency of motor driver applications. It outputs FG and RD through open-drain outputs to indicate the motor status. It implements a 150° sensorless back electromotive force (BEMF) control scheme suitable for three-phase motors. It comes in a high-efficiency thermal 16-pin TSSOP package. The rated operating temperature ranges from -40°C to 125°C.

Applications

• Electrical cooling fans
• Desktop cooling fans
• Server cooling fans

Key features

• Input voltage range: 5V to 16V
• Six integrated MOSFETs with 1.5A continuous output current
• Total driver H + L RDSON: 450mΩ
• Sensorless proprietary BEMF control scheme
• 150° commutation synchronous rectification PWM operation
• FG and RD open-drain outputs
• 5V LDO for external use, up to 20mA
• PWMIN input: 7kHz to 100kHz
• Overcurrent protection with externally adjustable resistor threshold
• Lock detection
• Voltage surge protection
• Under-voltage lockout (UVLO)
• Thermal shutdown
