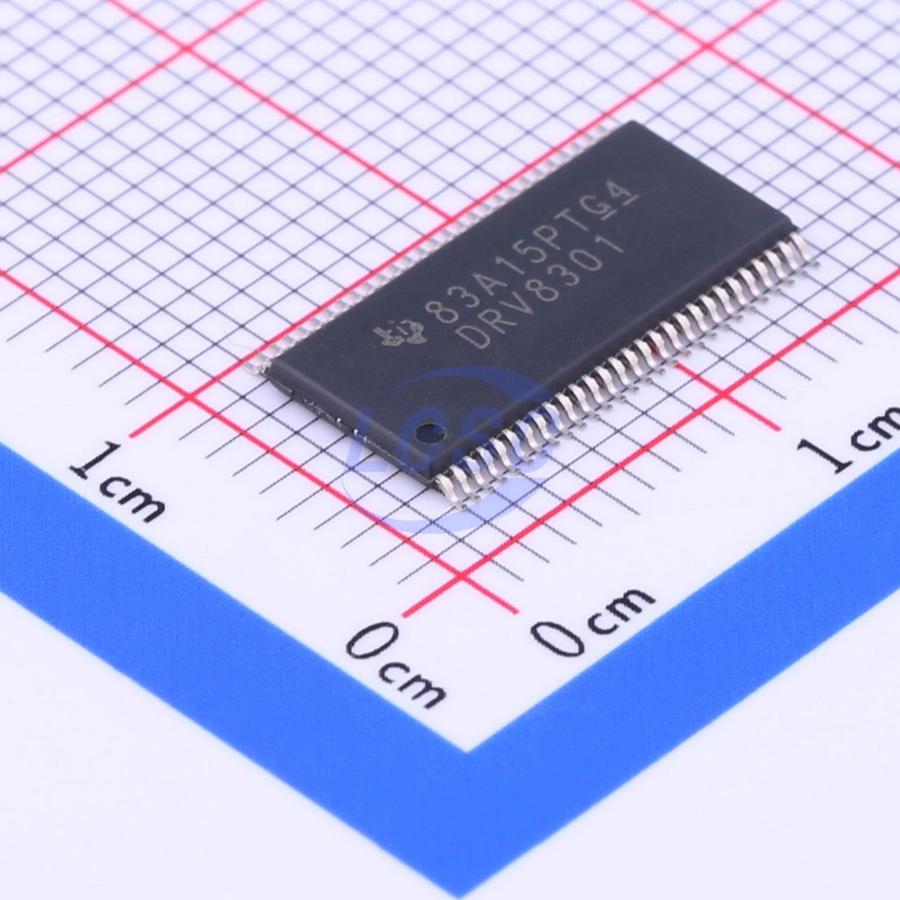

DRV8301DCAR

Three Phase 6V~60V MOSFET 1.7A 2.3A HTSSOP-56-6mm Motor Drivers, Controllers RoHS

HTSSOP-56-6mmROHS3 CompliantActive

Three-Phase Gate Driver With Dual Current Shunt Amplifiers and Buck Regulator

Manufacturer: TI
Manufacturer part #: DRV8301DCAR
Store part #: C98969
Package / case: HTSSOP-56-6mm
Category: Motor Drivers, Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,040 in stock

#C98969

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹449.77	₹449.77
10+	₹391.11	₹3,911.10
30+	₹356.13	₹10,683.90
100+	₹292.90	₹29,290.00
500+	₹276.60	₹1,38,300.00
1,000+	₹269.22	₹2,69,220.00

Quantity (min 1)

1 × ₹449.77

₹449.77

excl. GST

₹530.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

DRV8301DCAR

₹449.77 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Enable shutdown;Dead-time control;Interleaved conduction protection;Overcurrent Protection;Charge pump boost
Driven Configuration: Three Phase
Voltage - Supply: 6V~60V
Number of Channels: 6
Operating Temperature: -40℃~+125℃
Load Type: MOSFET
Current - Output High(IOH): 1.7A
Current - Output Low(IOL): 2.3A
Supply Current (Iq): 20uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.365 g

Overview

The DRV8301 is a gate driver IC for three-phase motor drive applications. The device provides three half-bridge drivers, each capable of driving two N-channel MOSFETs. The DRV8301 supports up to 1.7-A source and 2.3-A peak current capability. The DRV8301 can operate off of a single power supply with a wide range from 6-V to 60-V. The device uses a bootstrap gate driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8301 uses automatic handshaking when the high-side or low-side MOSFET is switching to prevent flow of current. Integrated VDS sensing of the high-side and low-side MOSFETs is used to protect the external power stage against overcurrent conditions. The DRV8301 includes two current shunt amplifiers for accurate current measurement. The amplifiers support bidirectional current sensing and provide an adjustable output offset up to 3 V. The DRV8301 also includes an integrated switching mode buck converter with adjustable output and switching frequency. The buck converter can provide up to 1.5 A to support MCU or additional system power needs. The SPI provides detailed fault reporting and flexible parameter settings such as gain options for the current shunt amplifiers and slew rate control of the gate drivers.

Applications

3-Phase BLDC and PMSM Motors
CPAPs and Pumps
E-bikes
Power Tools
Robotics and RC Toys
Industrial Automation

Key features

6-V to 60-V Operating Supply Voltage Range
1.7-A Source and 2.3-A Sink Gate Drive Current Capability
Slew Rate Control for EMI Reduction
Bootstrap Gate Driver With 100% Duty Cycle Support
6- or 3-PWM Input Modes
Dual Integrated Current Shunt Amplifiers With Adjustable Gain and Offset
Integrated 1.5-A Buck Converter
3.3-V and 5-V Interface Support
SPI Protection Features:
Programmable Dead Time Control (DTC)
Programmable Overcurrent Protection (OCP)
PVDD and GVDD Undervoltage Lockout (UVLO)
GVDD Overvoltage Lockout (OVLO)
Overtemperature Warning/Shutdown (OTW/OTS) Reported Through nFAULT, nOCTW, and SPI Registers
