TIDatasheet (PDF)

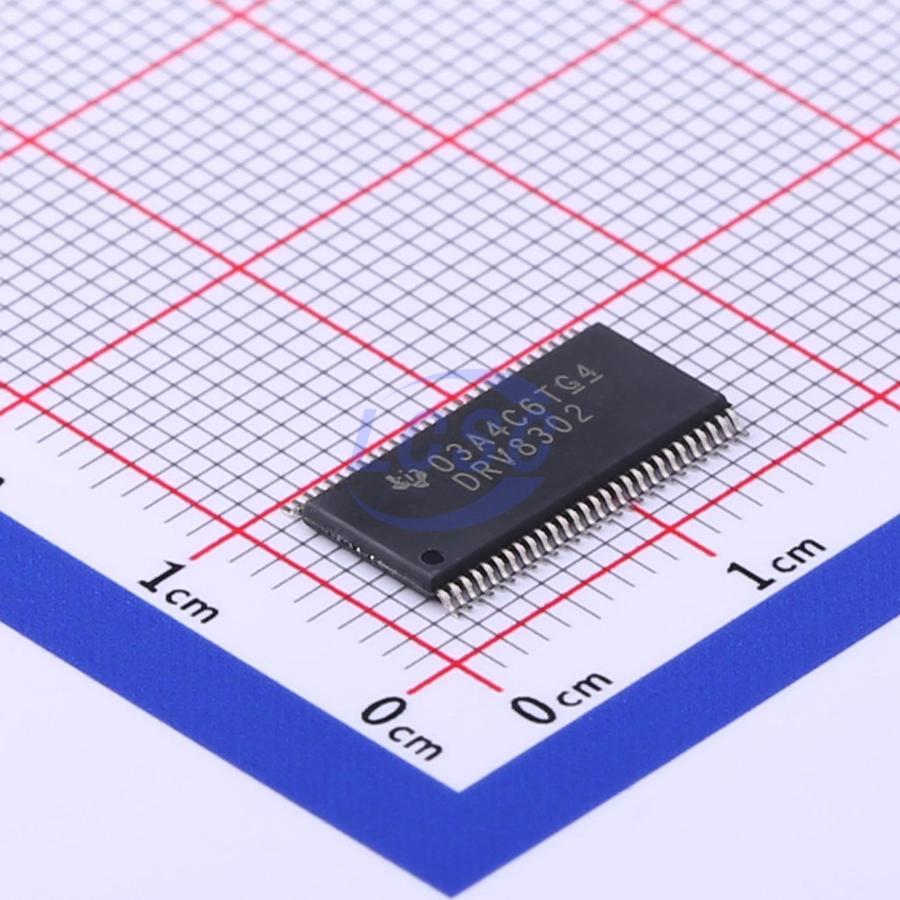

DRV8302DCAR
8V~60V HTSSOP-56-6mm Motor Drivers, Controllers RoHS
HTSSOP-56-6mmROHS3 CompliantActive
Three-phase gate driver with dual shunt amplifiers and buck regulators - Hardware control
- Manufacturer
- TI
- Manufacturer part #
- DRV8302DCAR
- Store part #
- C79740
- Package / case
- HTSSOP-56-6mm
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,590 in stock
#C79740
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹641.28 | ₹641.28 |
| 10+ | ₹548.37 | ₹5,483.70 |
| 30+ | ₹493.02 | ₹14,790.60 |
| 100+ | ₹437.01 | ₹43,701.00 |
| 500+ | ₹411.18 | ₹2,05,590.00 |
| 1,000+ | ₹399.45 | ₹3,99,450.00 |
1 × ₹641.28
₹641.28
excl. GST
₹756.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8302DCAR
₹641.28 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Features
- Interleaved conduction protection
- Technology
- No
- Voltage - Supply
- 8V~60V
- Interface
- PWM
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 50uA
- Number of Half Bridges
- 3
- Peak Current
- 2.3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.265 g
