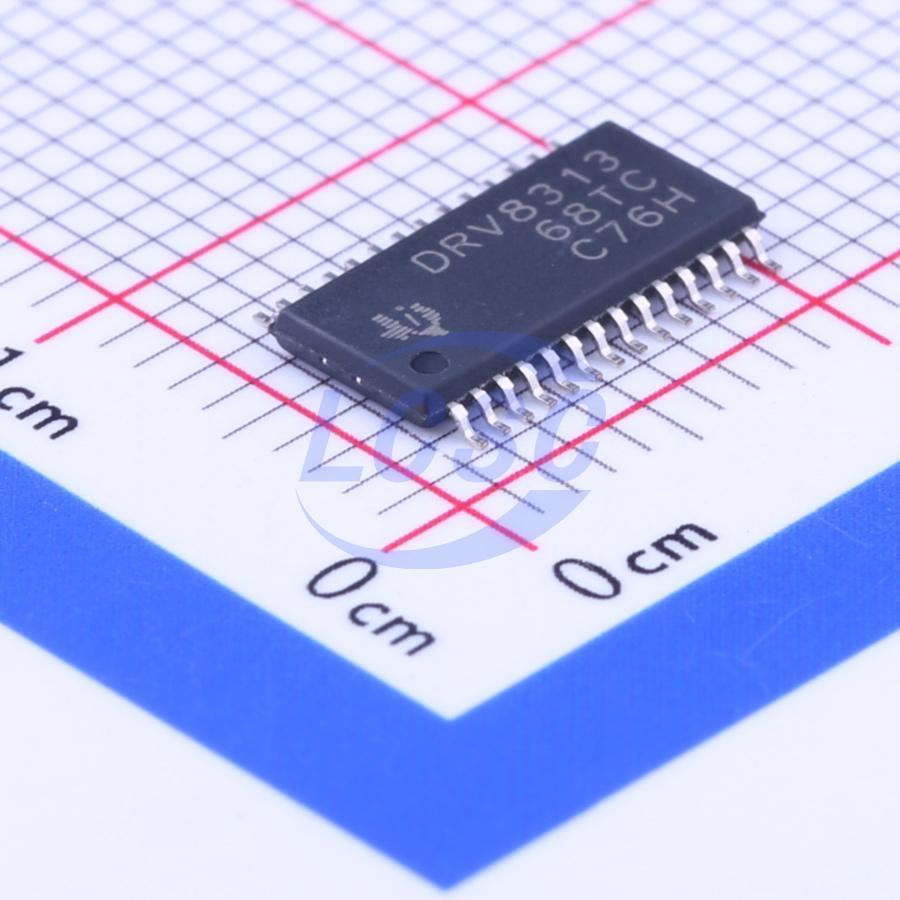

DRV8313PWPR

HTSSOP-28 Motor Drivers, Controllers RoHS

HTSSOP-28ROHS3 CompliantActive

Three and a half H-bridge driver integrated circuits

Manufacturer: TI
Manufacturer part #: DRV8313PWPR
Store part #: C92482
Package / case: HTSSOP-28
Category: Motor Drivers, Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,278 in stock

#C92482

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹592.53	₹592.53
10+	₹510.27	₹5,102.70
30+	₹461.44	₹13,843.20
100+	₹411.96	₹41,196.00
500+	₹389.16	₹1,94,580.00
1,000+	₹378.96	₹3,78,960.00

Quantity (min 1)

1 × ₹592.53

₹592.53

excl. GST

₹699.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

DRV8313PWPR

₹592.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Drive Type: Three Phase
Technology: Yes
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 800uA
Number of Half Bridges: 3
Peak Current: 2.5A

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.261 g

Overview

Three half-H-bridge driver IC - Drives 3-phase brushless DC motors - Independent half-bridge control - Pin for low-side current sensing - Low MOSFET on-resistance - 2.5A maximum driver current at 24V, 25℃ - General-purpose comparator usable for current sensing or other functions - Integrated 3.3V 10mA LDO regulator - 8V to 60V operating supply voltage range - Thermally enhanced SMT package. The DRV8313 provides three independently controllable half-H-bridge drivers. Although it can also be used to drive solenoids or other loads, it is primarily intended to drive a three-phase brushless DC motor. Each output driver channel contains N-channel power MOSFETs in a half-H-bridge configuration. This design connects the ground terminal of each driver to a pin to enable current sensing on each output. A general-purpose comparator is available for current limiting circuitry or other functions. The DRV8313 provides up to 2.5A peak current or 1.75A RMS output current per half-H-bridge channel (with adequate PCB thermal dissipation at 24V and 25℃).
